Product Features
-
Easy Installation
Damage-Free to Walls & Window Frames -

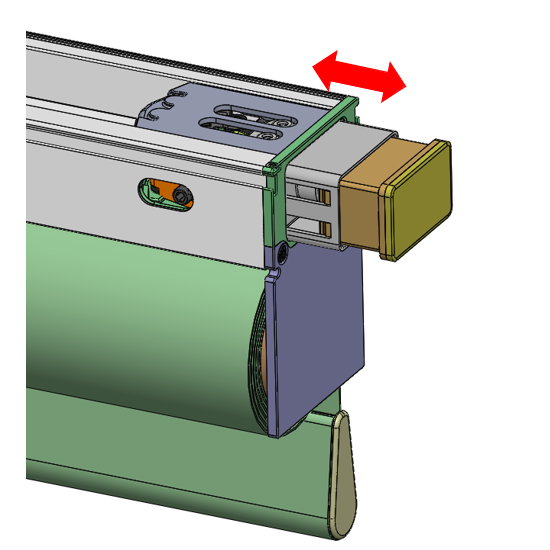

Tension Fit Mechanism
Adjustable Length Strong load-bearing capacity Portability -

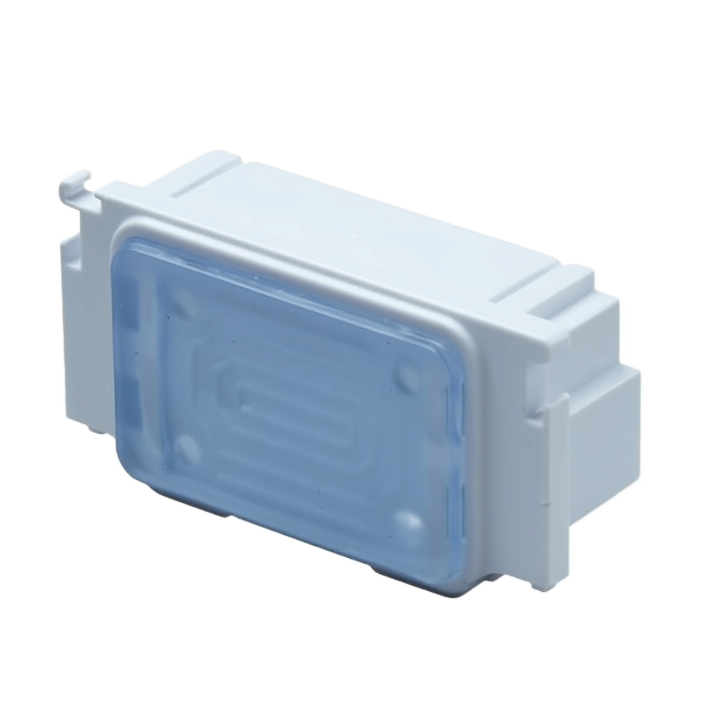

Gel Pad
Anti-slip and Stable Wall Protection Noise Reduction
Wall Surface Requirements
-
Tile Wall -
Concrete Wall -
Solid Wood Wall -
Wall Paper Wall -
Painted Wall
Weight Limitations
| Shade Width (Inch/cm) | Required Recess Depth (mm) | No Drill End Cap Adjustable Travel Range (mm) | Profile Image | Max Load (KG/LBS) |
|---|---|---|---|---|
| 24~72 Inch 60~180 cm | Roller shade-1#No drill end plug 70 mm | 0～+18 mm |  | Max. 20 kg (44 LBS), check with Leafy for details. |
| 24~72 Inch 60~180 cm | Roller shade-4#No drill end plug 55 mm | 0～+18 mm |  | Max. 20 kg (44 LBS), check with Leafy for details. |
Max. window width = Blind width + No Drill Adjustable Travel Range
The above loading capacity data may vary under the following conditions. Please note carefully during installation:
• If the top beam or tube is bent.
• If the installation wall is not a solid wall (such as hollow bricks, gypsum board, etc.)
• If the curtain length is too long, resulting in excessive fabric self-weight.
Assembly Video
Component List
| Picture | Code | Picture | Code |
|---|---|---|---|
|

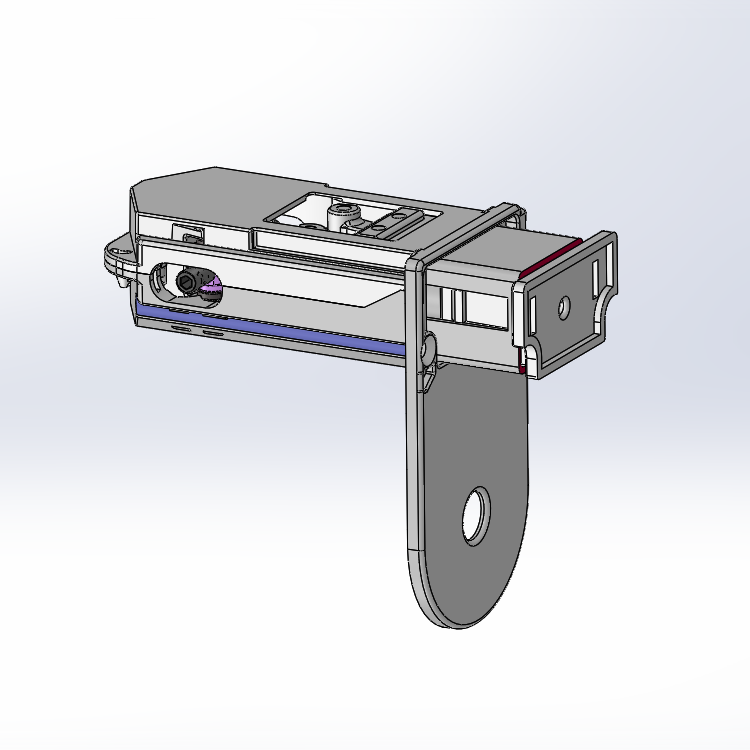

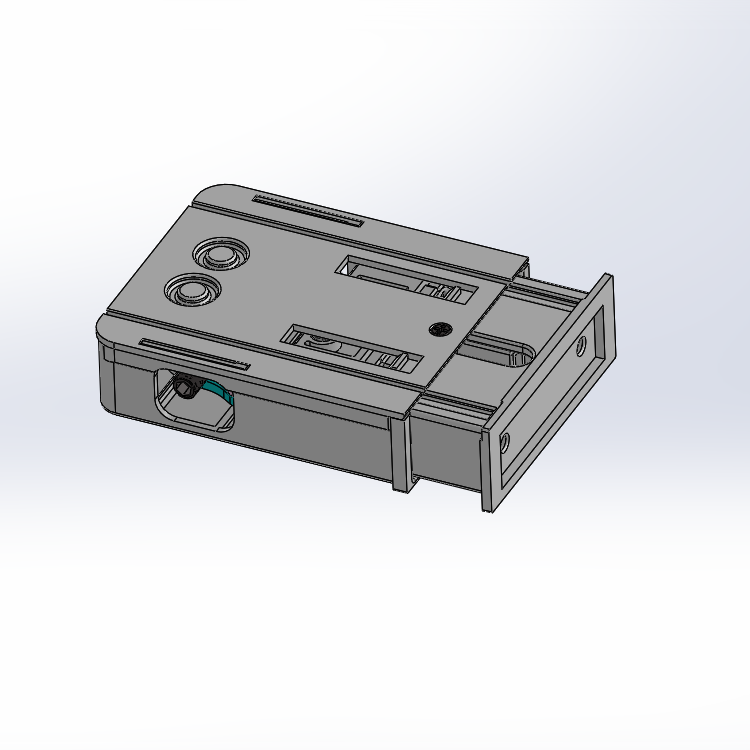

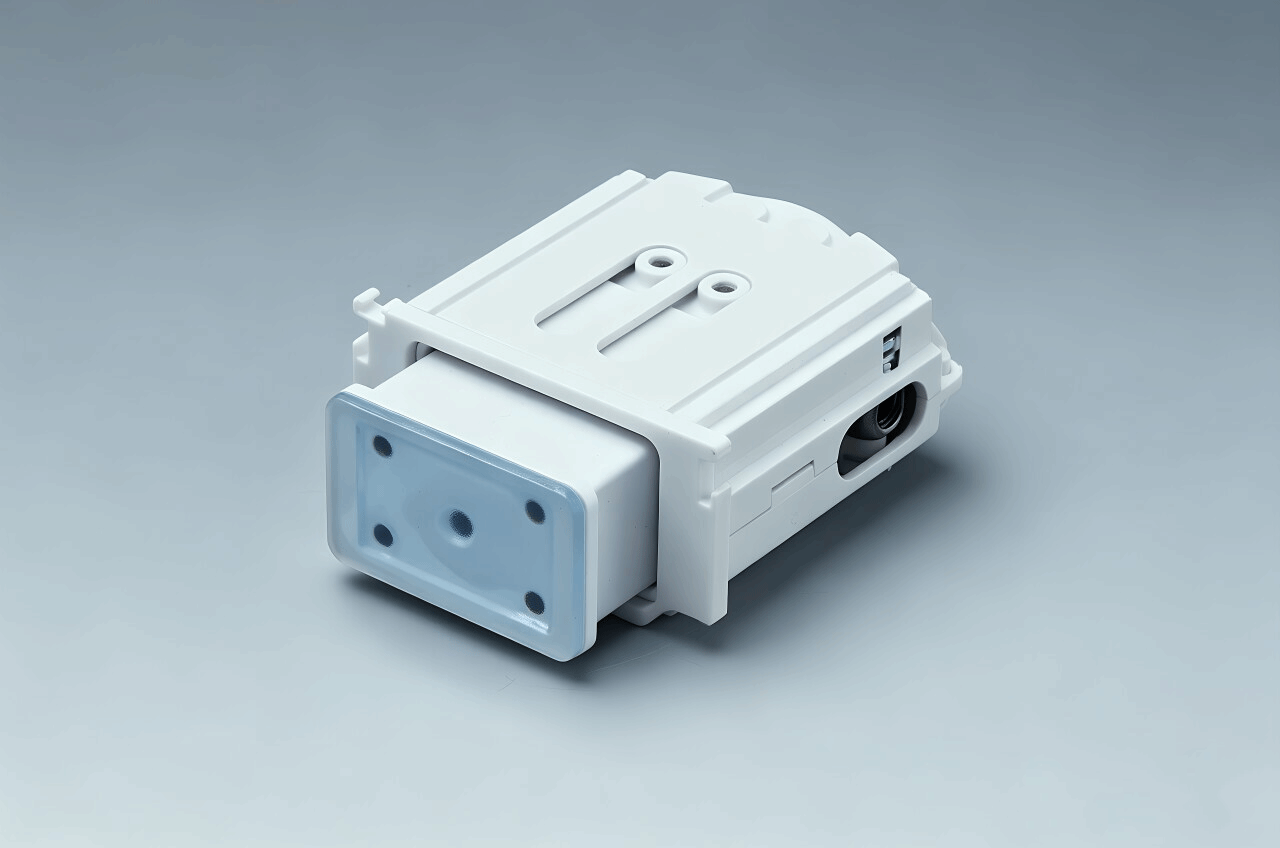

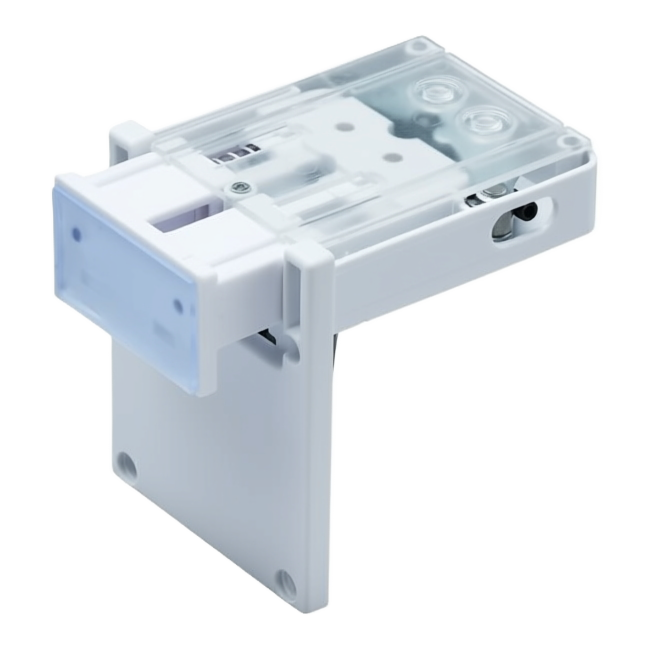

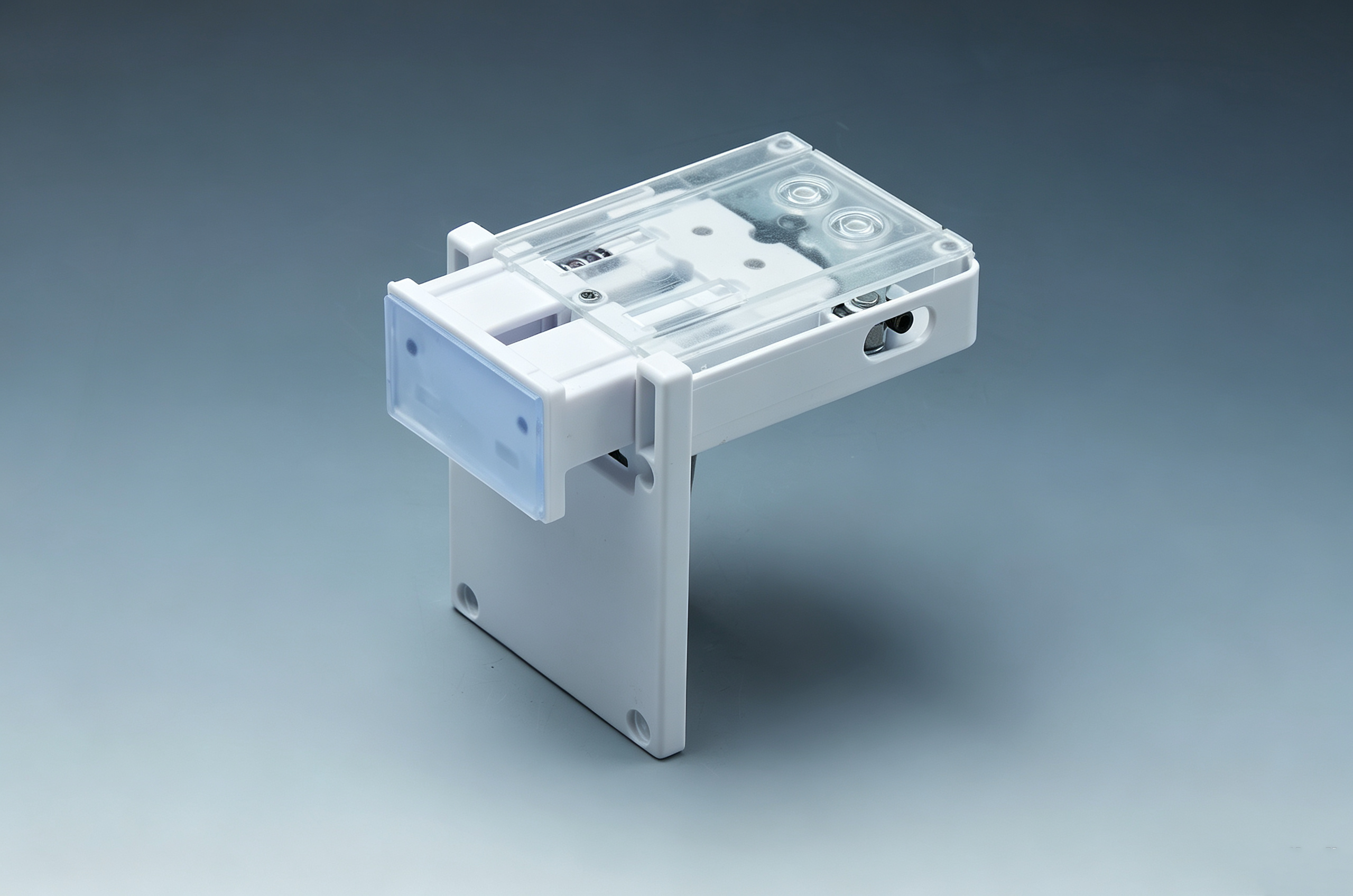

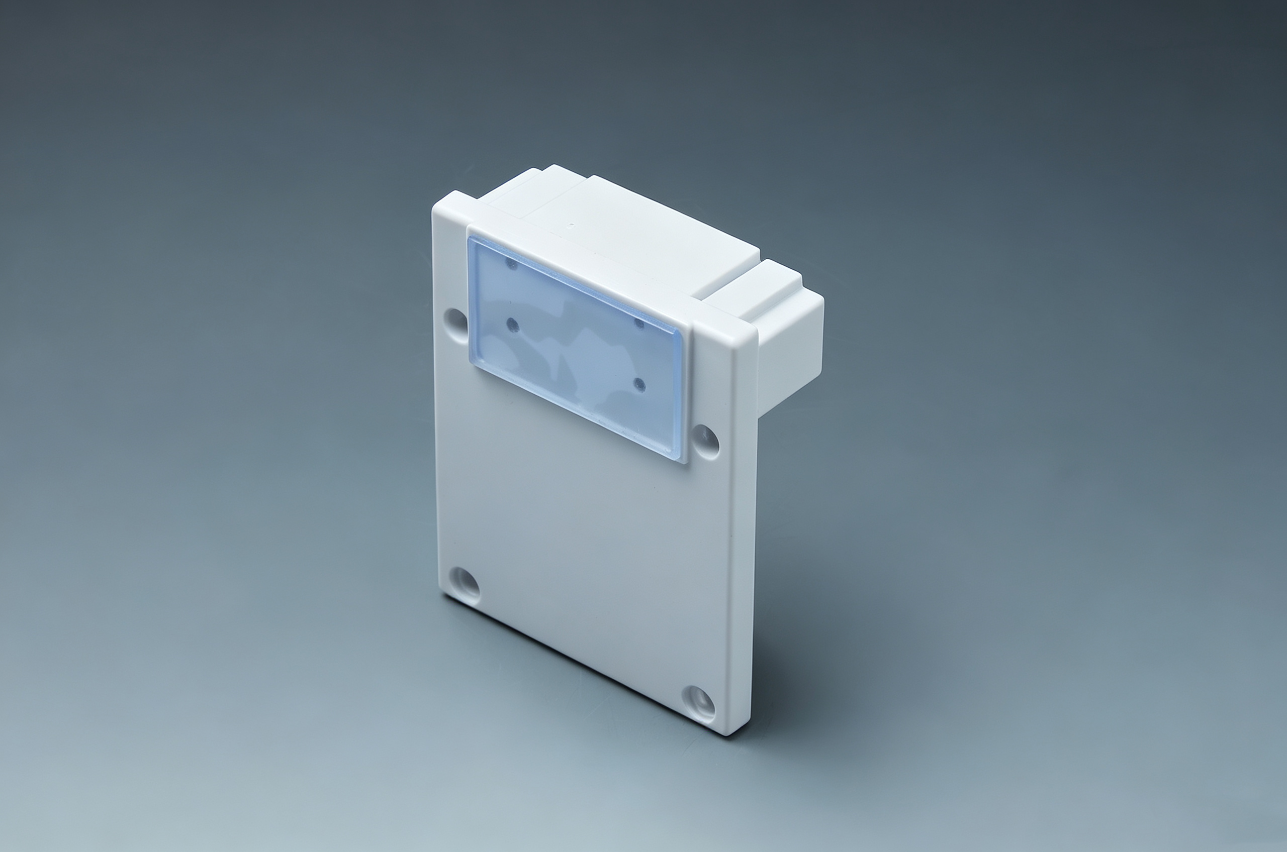

Name：Roller shade-1#No drill end plug(imbedded pad) Code：R001607 |
 |

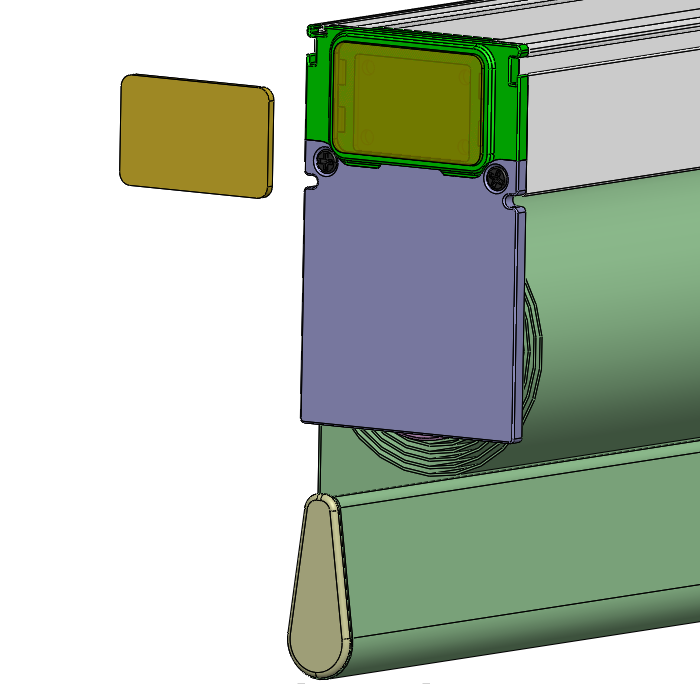

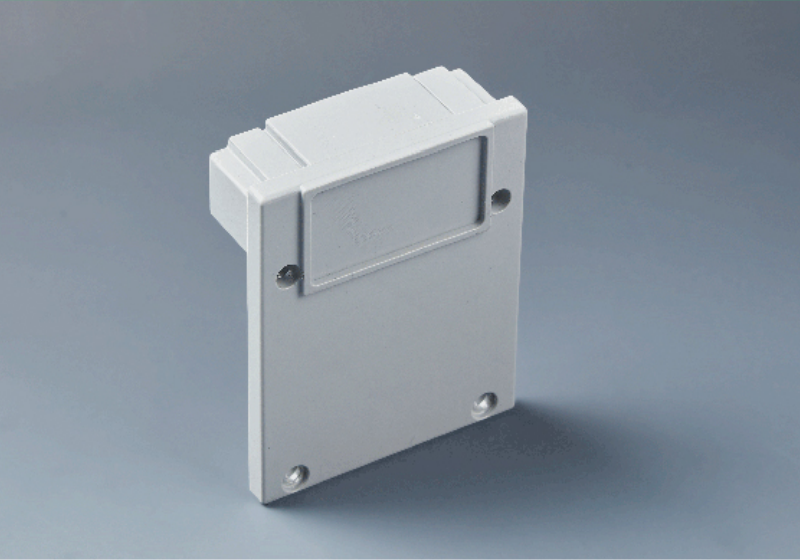

Name：Roller shade-1#No drill headrail end cap(imbedded pad) Code：R004140 |
|

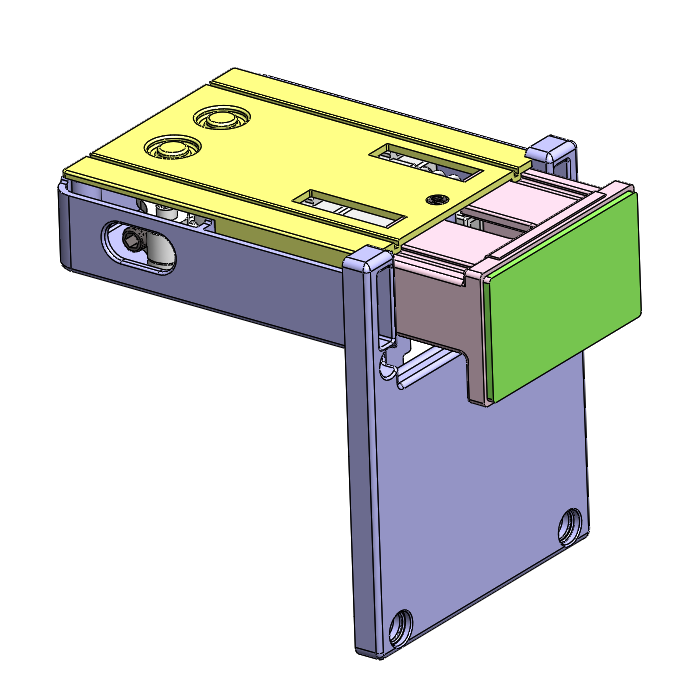

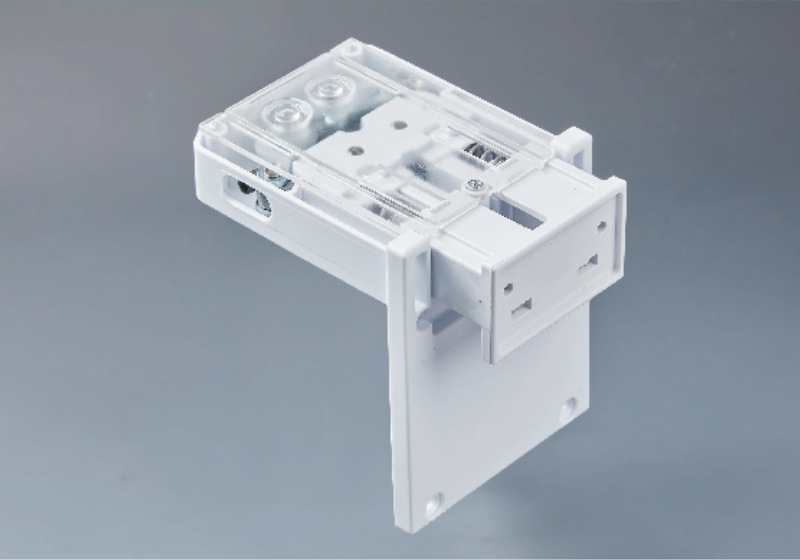

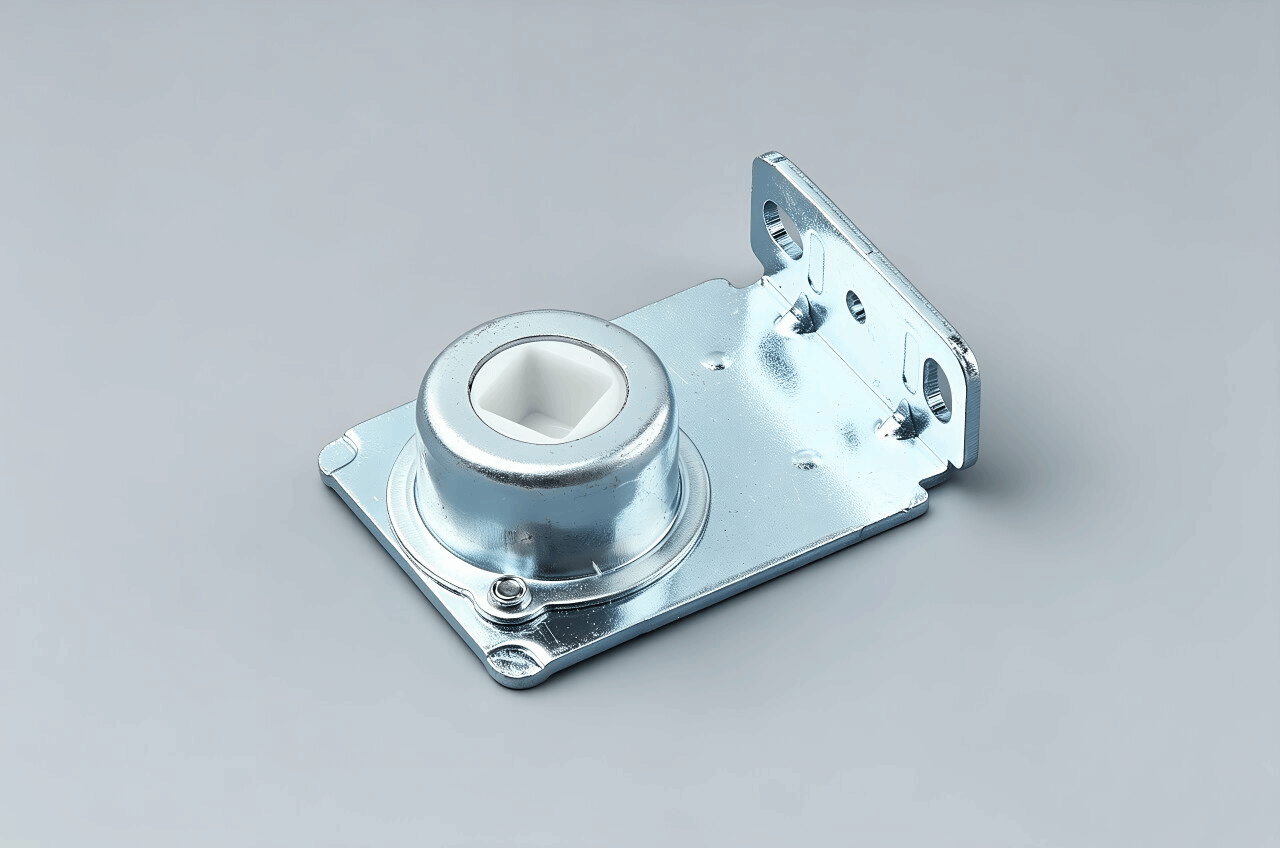

Name：RIC-Limit-adjust bracket Code：R000811 |
 |

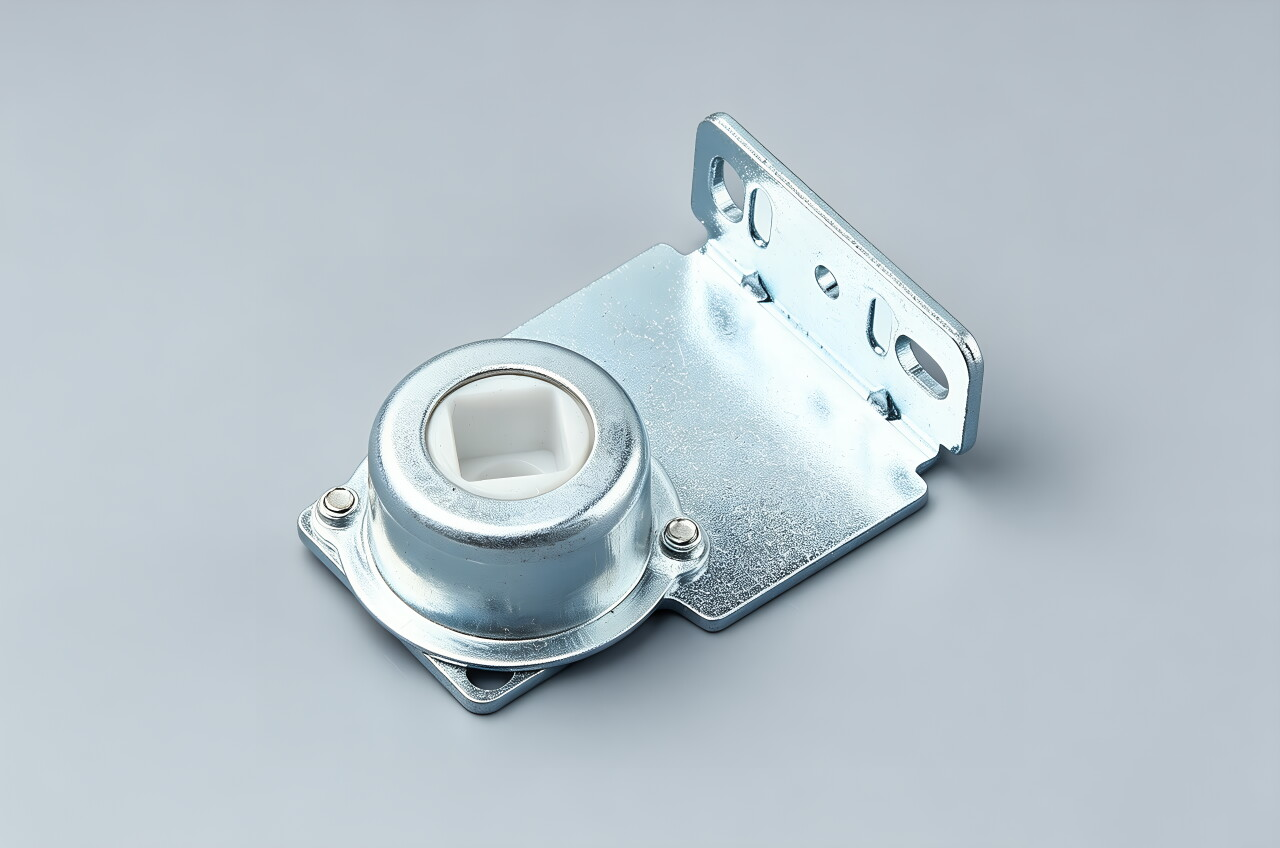

Name：RIC-Bracket Code：R004223 |
|

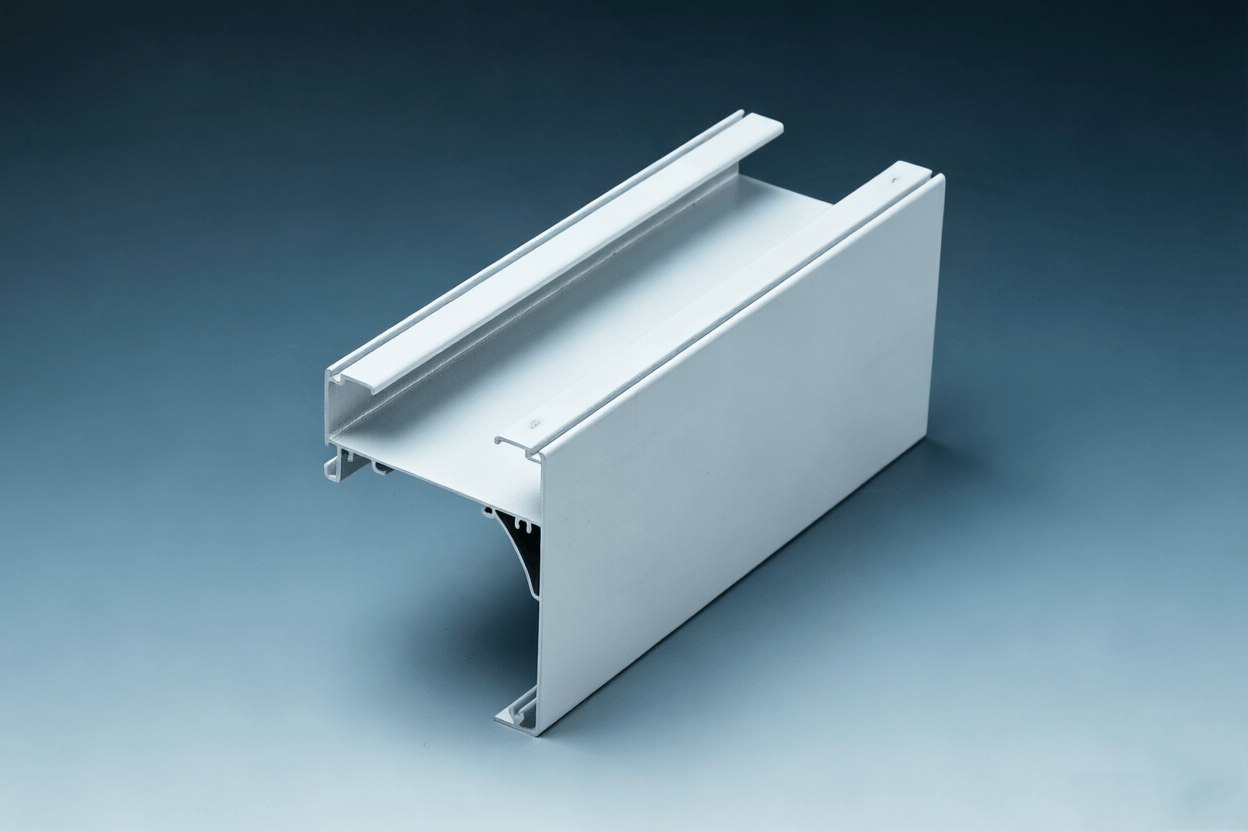

Name：RIC-No drill headrail Code：R005010 |
 |

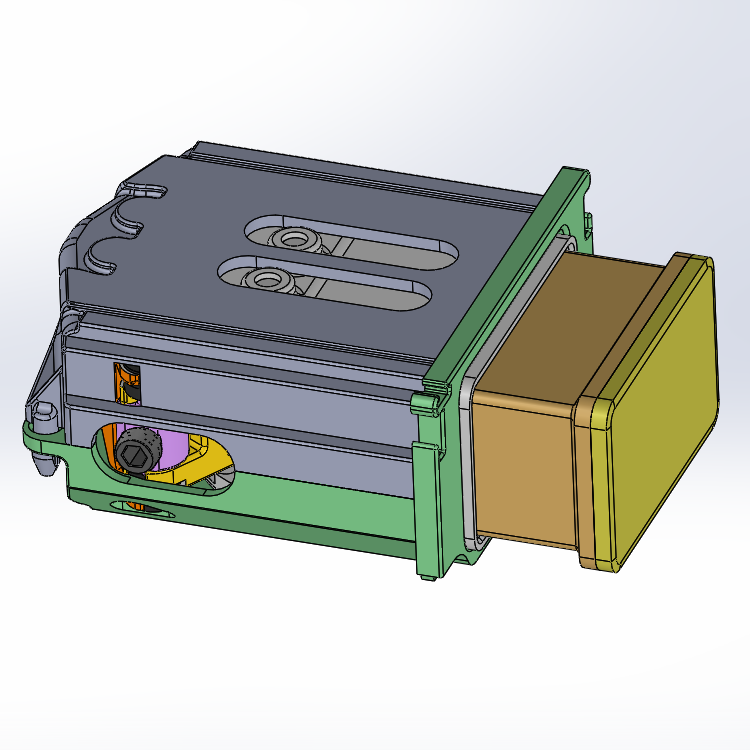

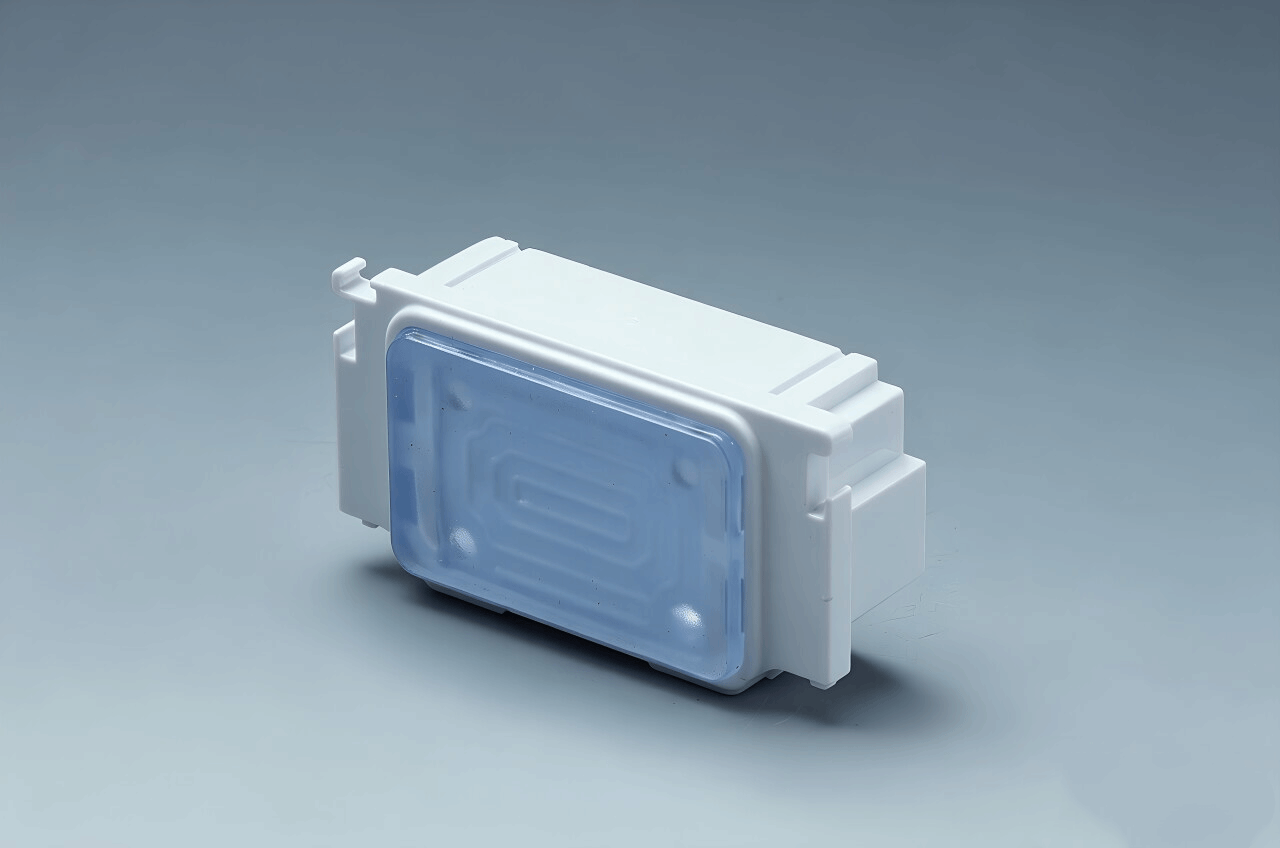

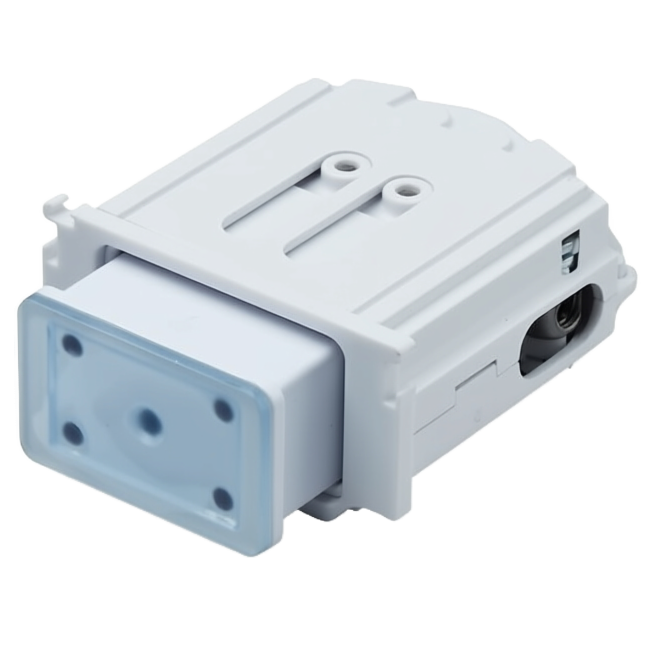

Name：Roller shade-4#No drill end plug(imbedded pad) Code：R001606 |
|
Name：Roller shade-4#No drill headrail end cap(imbedded pad) Code：R004137 |
 |
Name：Roller shade-4# No drill brackert cover Code：R004139 |
|

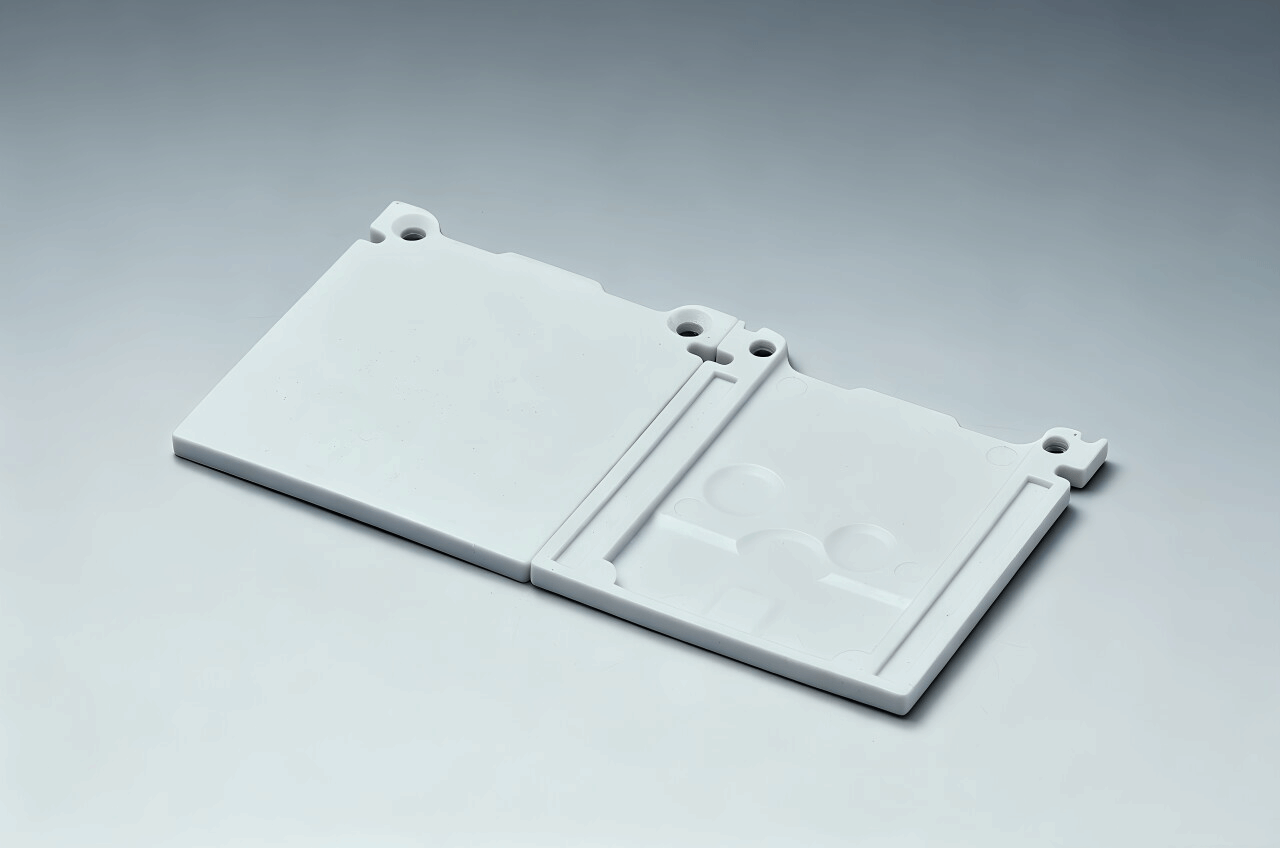

Name：RIC-Bracket6-1 Code：R004231 |
 |
Name：RIC-Bracket6-2 Code： R004238 |
|

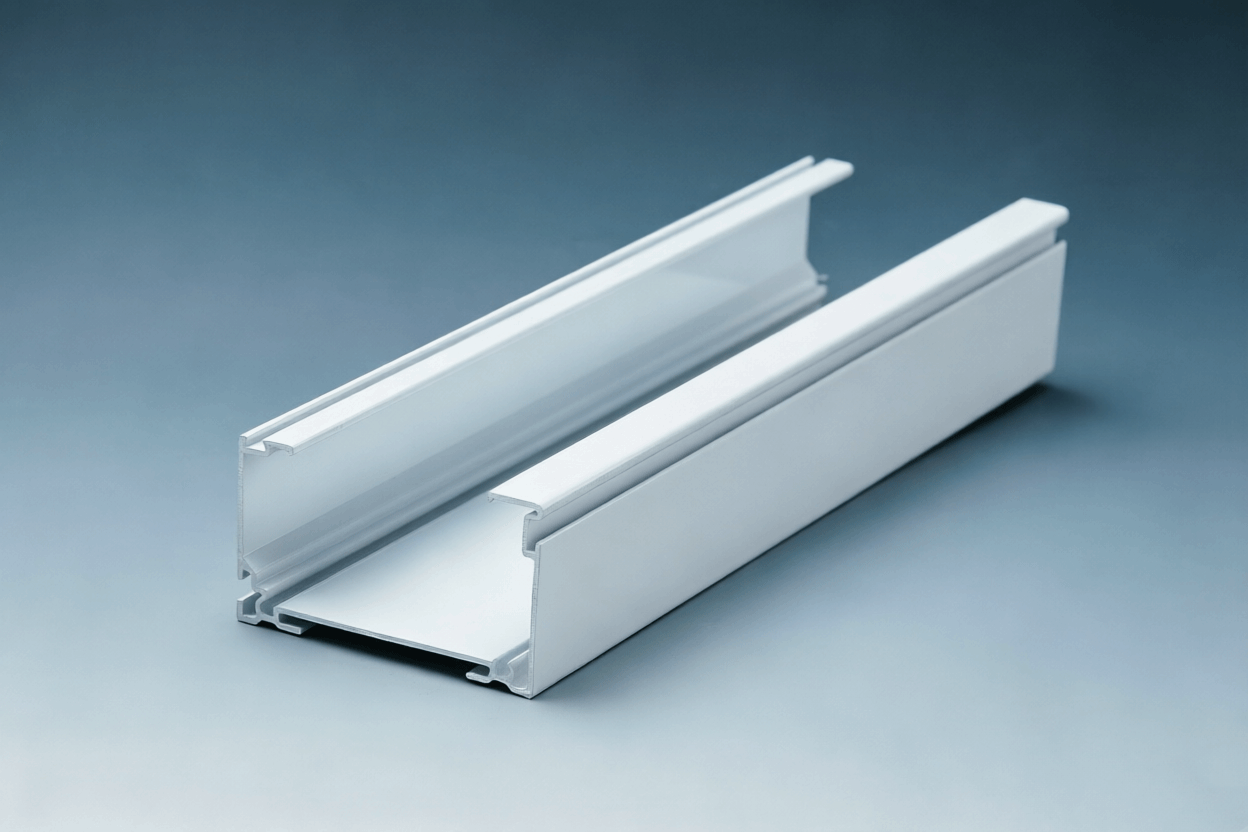

Name：Roller shade-4# Headrail Code： |
 |

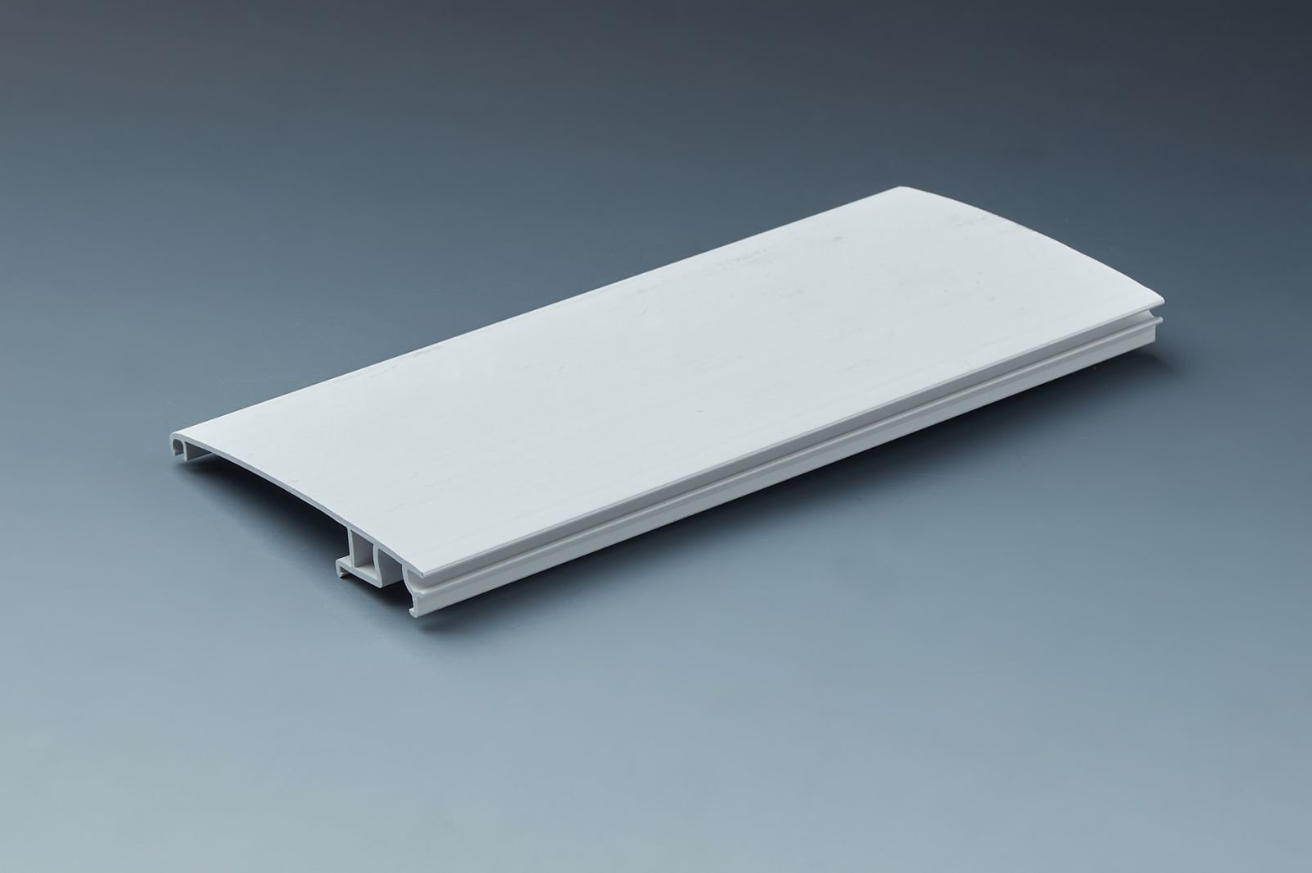

Name：Headrail decorative cover Code： |
|

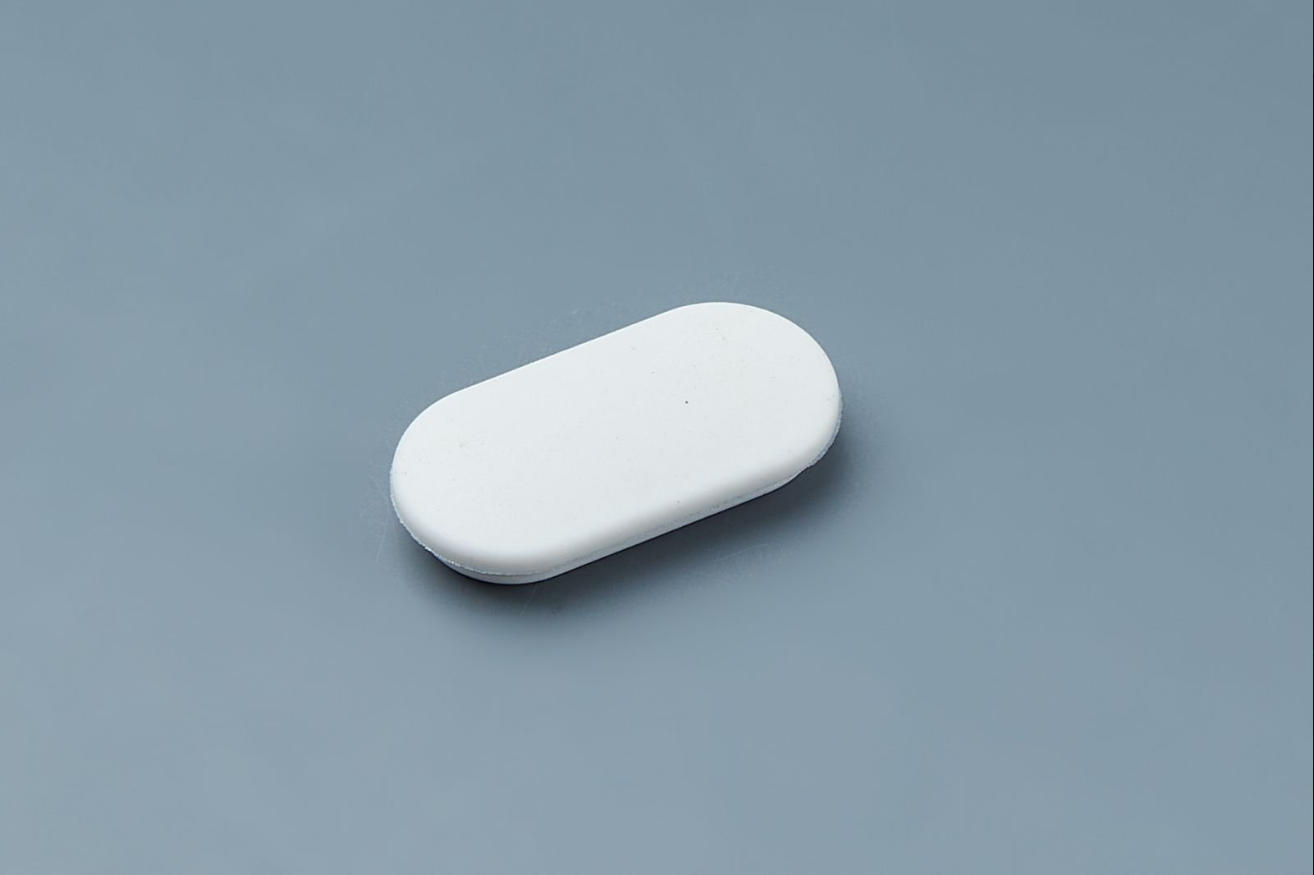

Name：CHC-Plug Code：H002901 |
 |

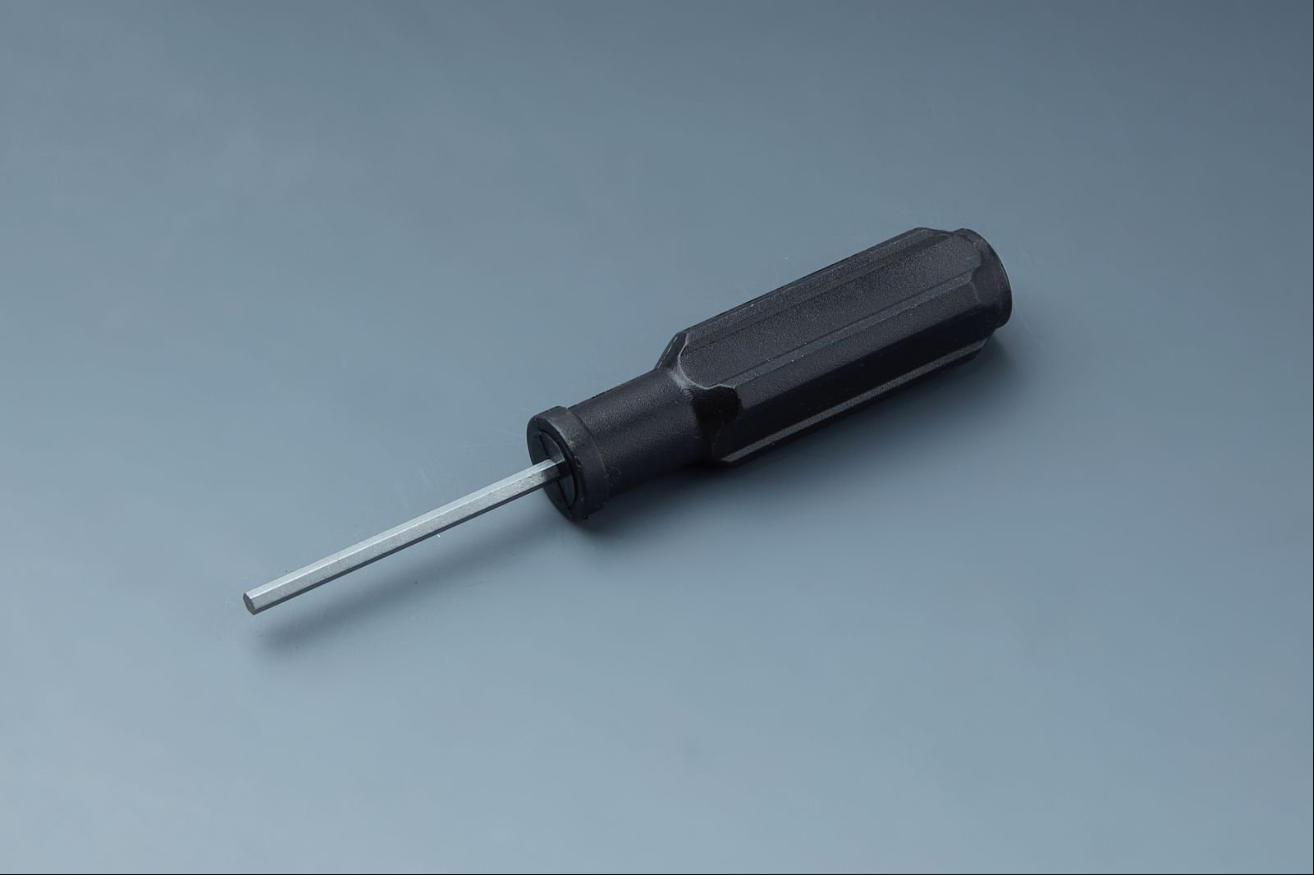

Name：No drill-Bracket adjustment screwdriver Code：L019931 |
