CHC05

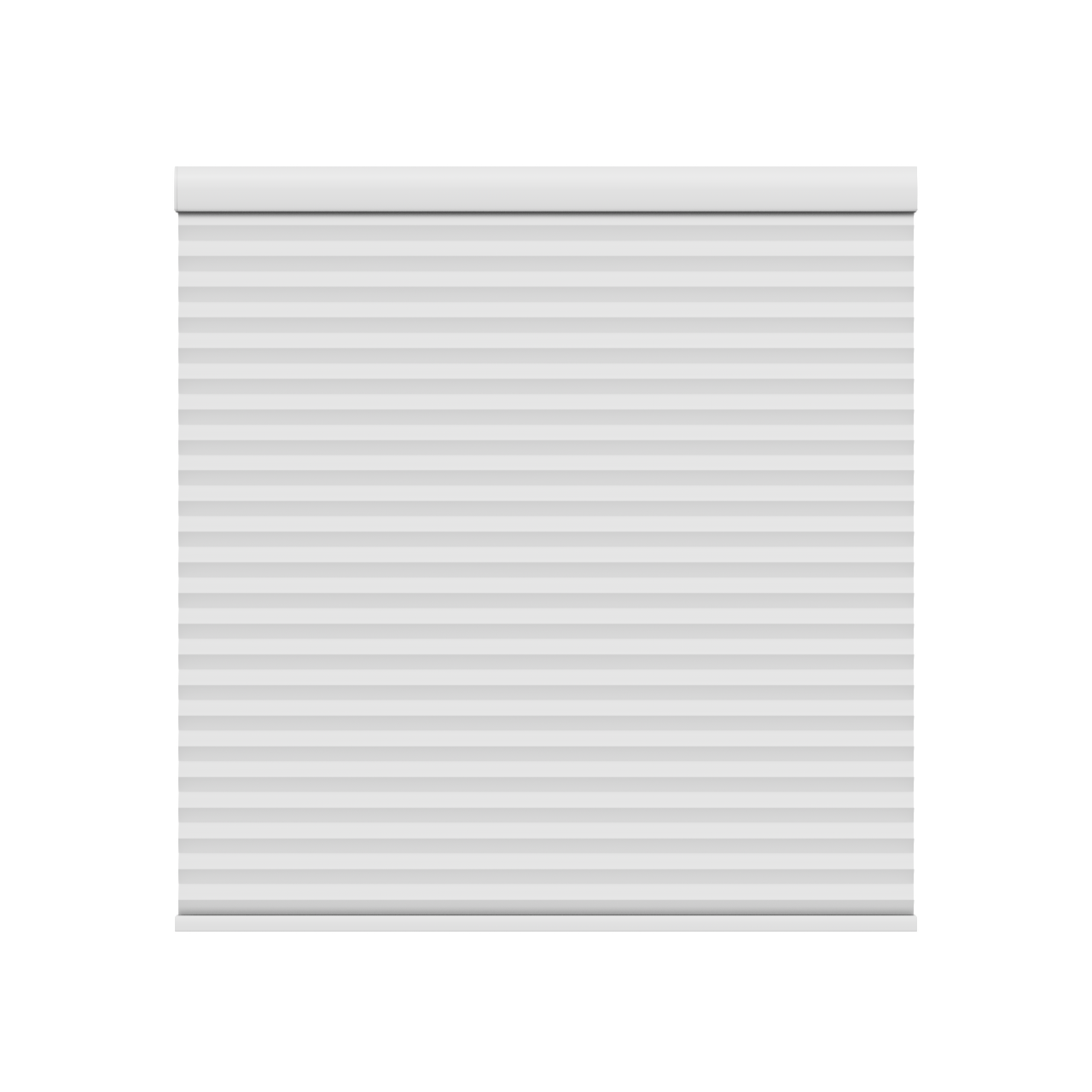

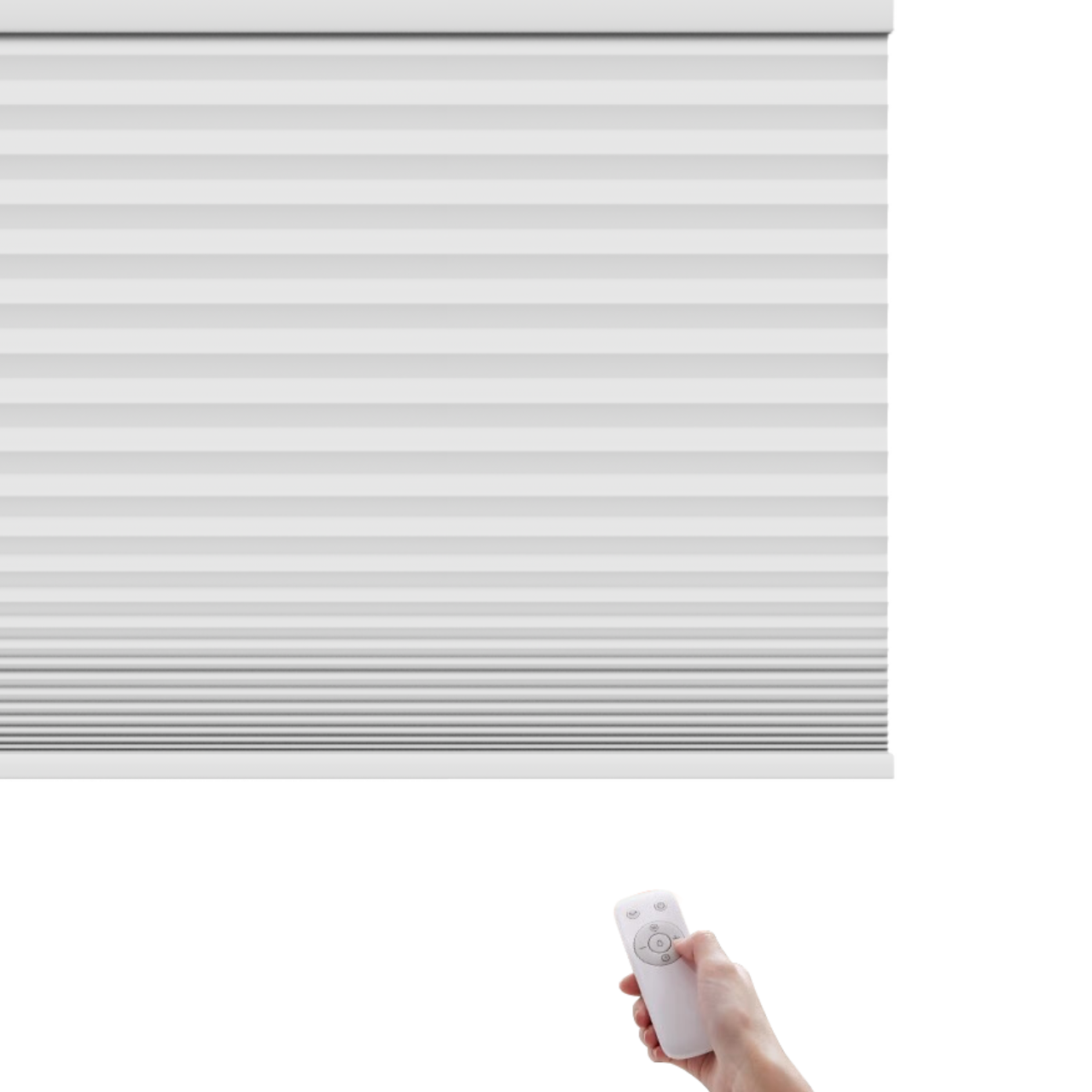

38mm & 45mm Honeycomb Shade
Product Features
-
Small & light weight motors
-

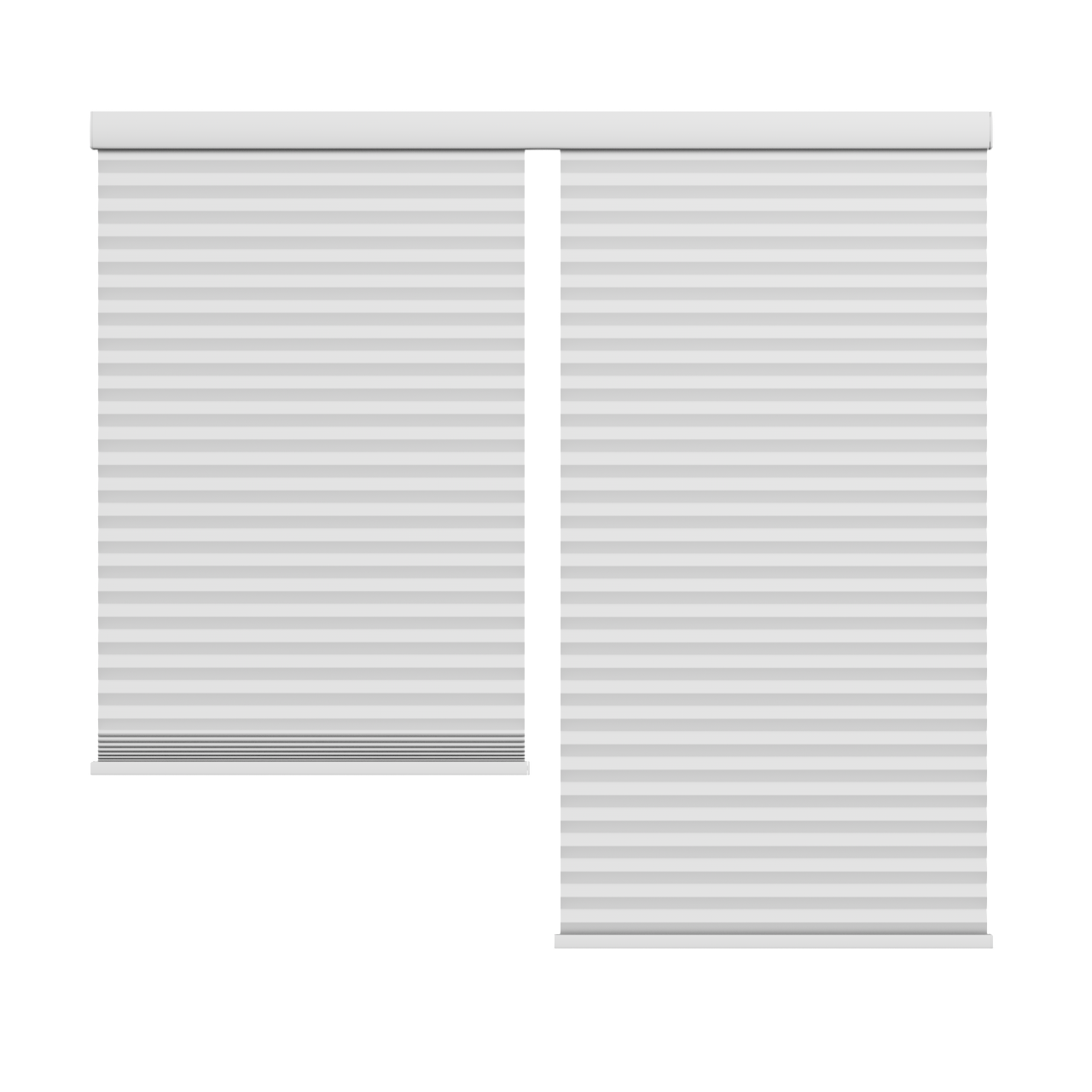

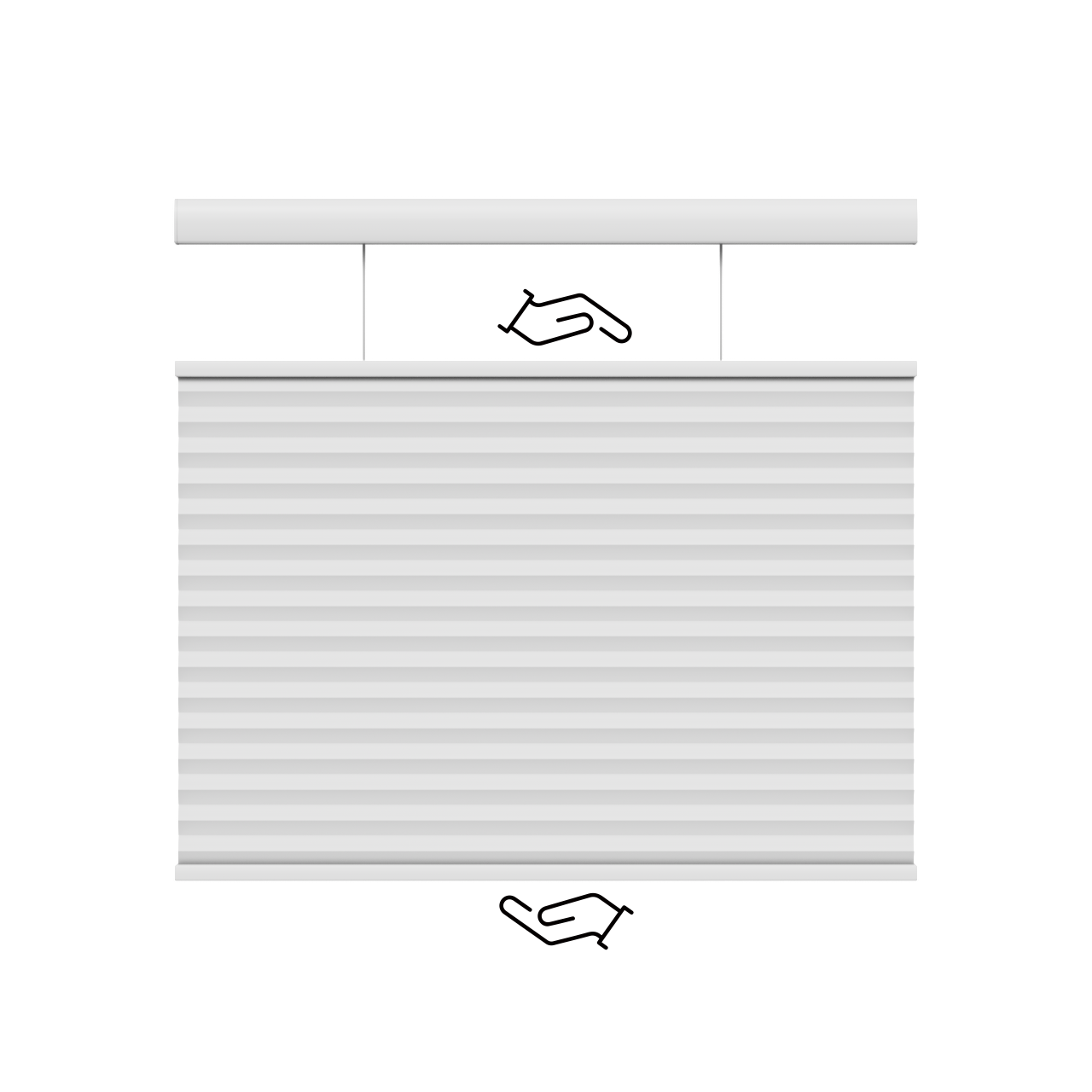

One headrail with 3 operations
-

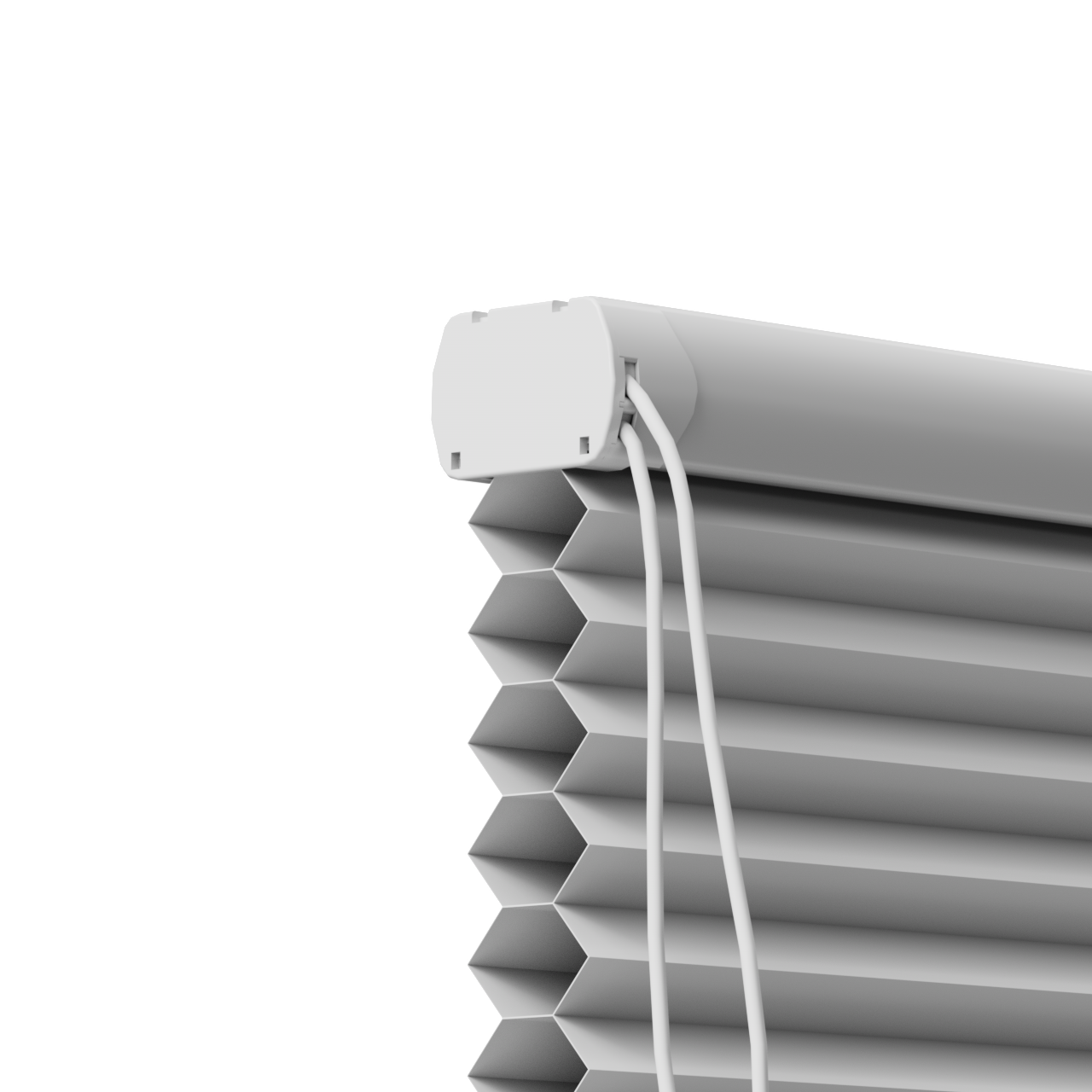

Headrail dust covers
-
Always even no matter size
-
Light weight operation
-
Small light gap
-
Ideal for Narrow shades

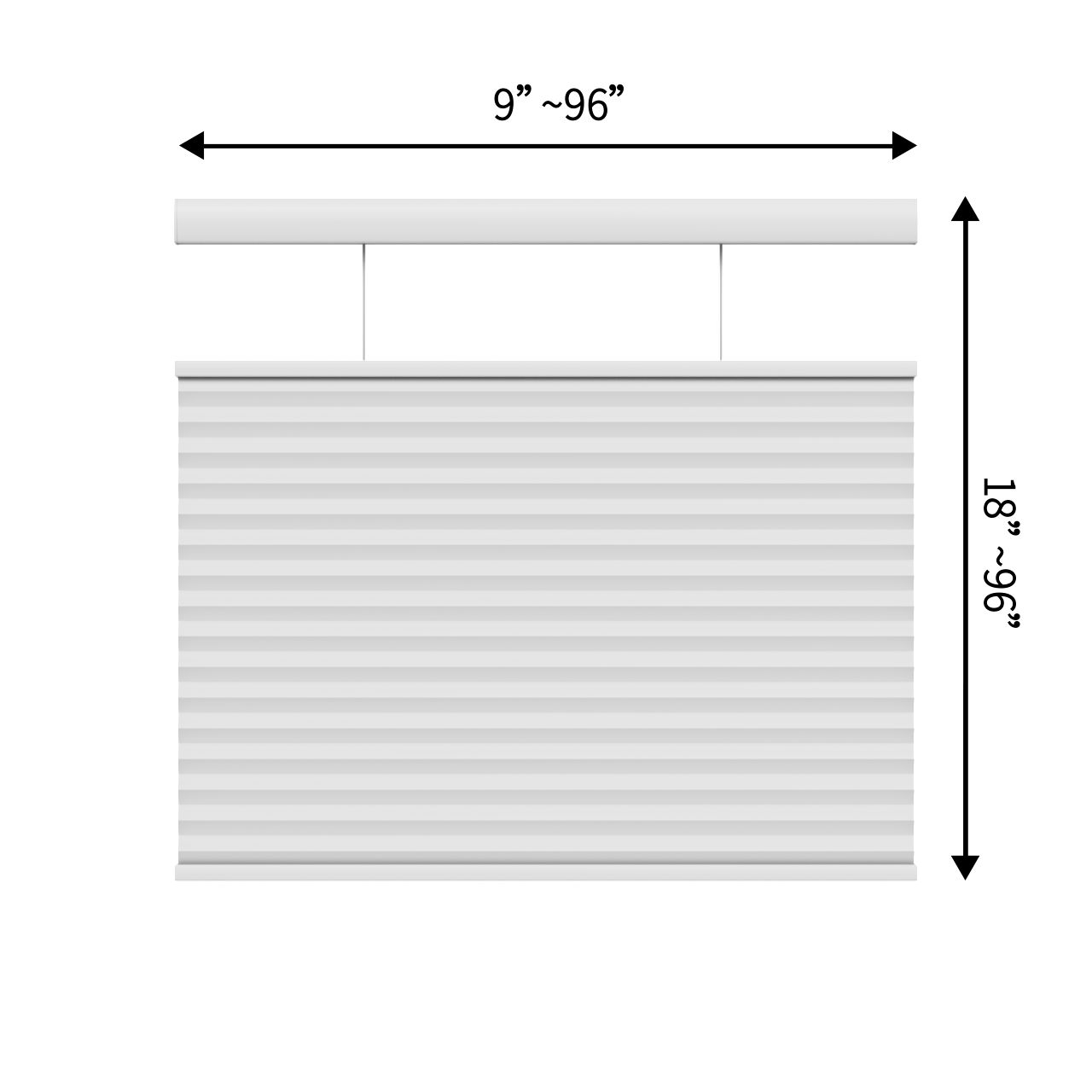

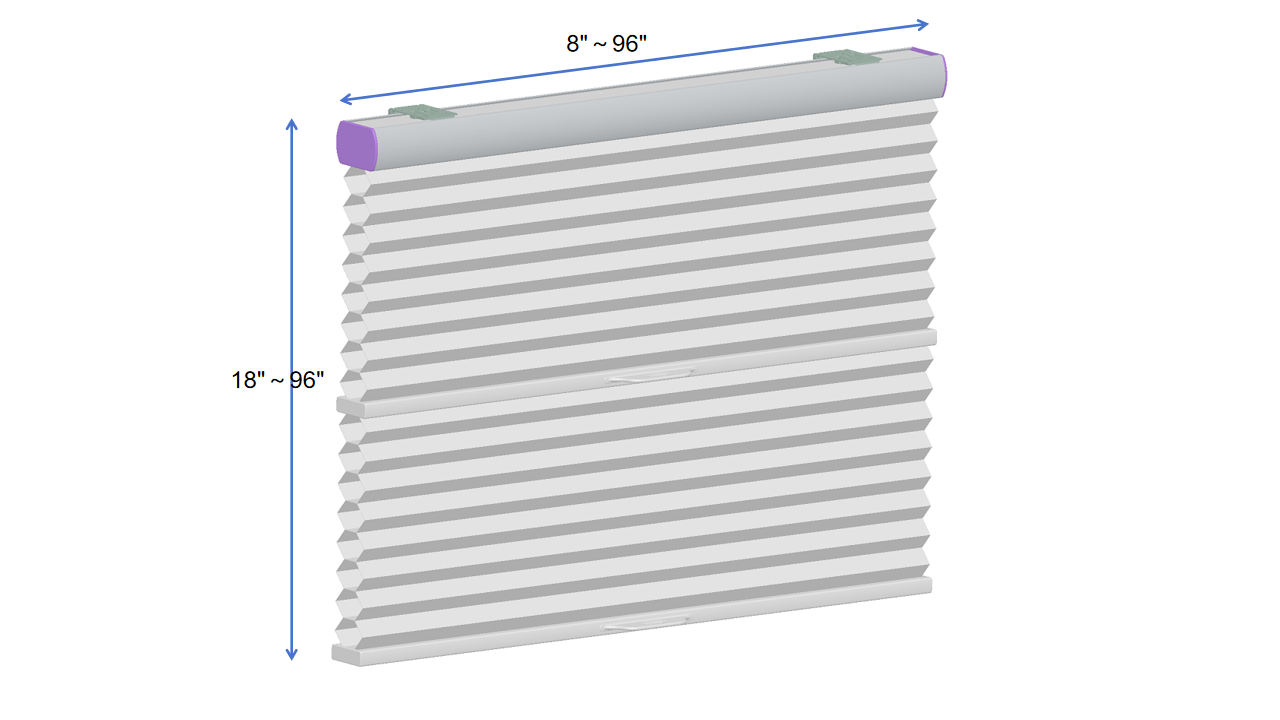

Product Size
Product Details

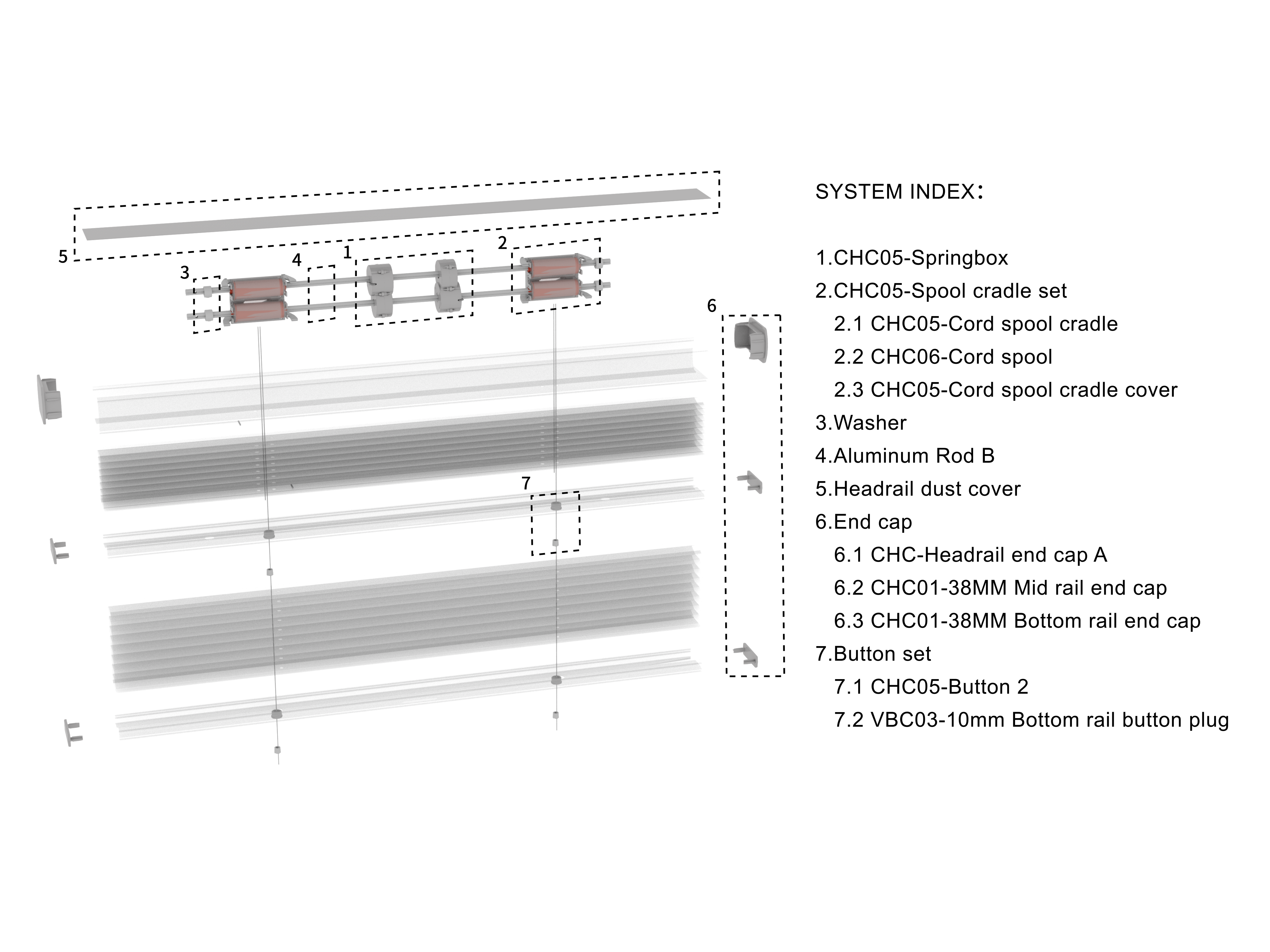

Component List
| Picture | Code | Picture | Code |
|---|---|---|---|
|
Name：CHC05- Spring box Specs：96A 96B 96H Code：H05016A H05016B H05016H |
 |

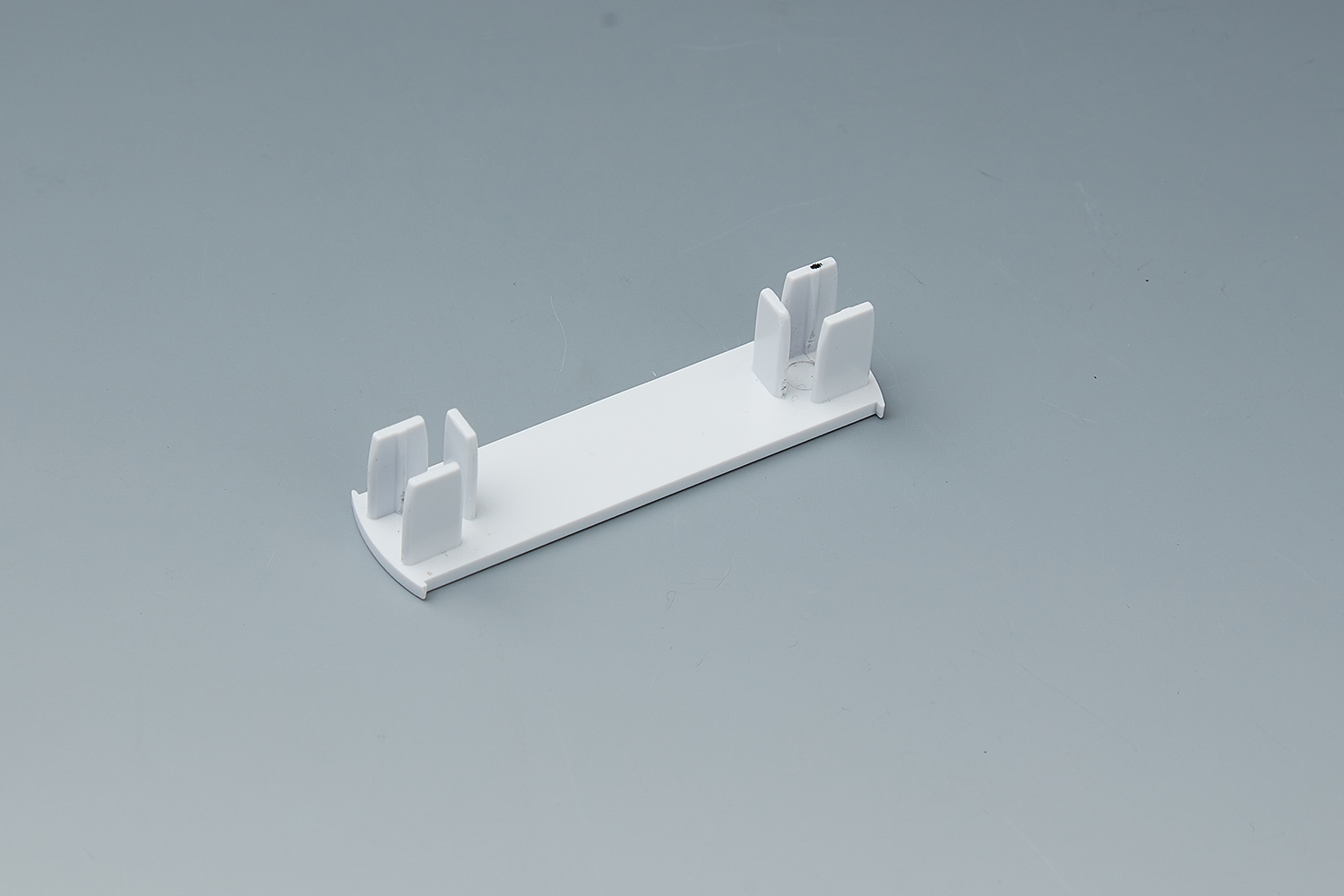

Name：CHC05-Spool cradle Specs：Left Right Code：H050702 H050703 |
|

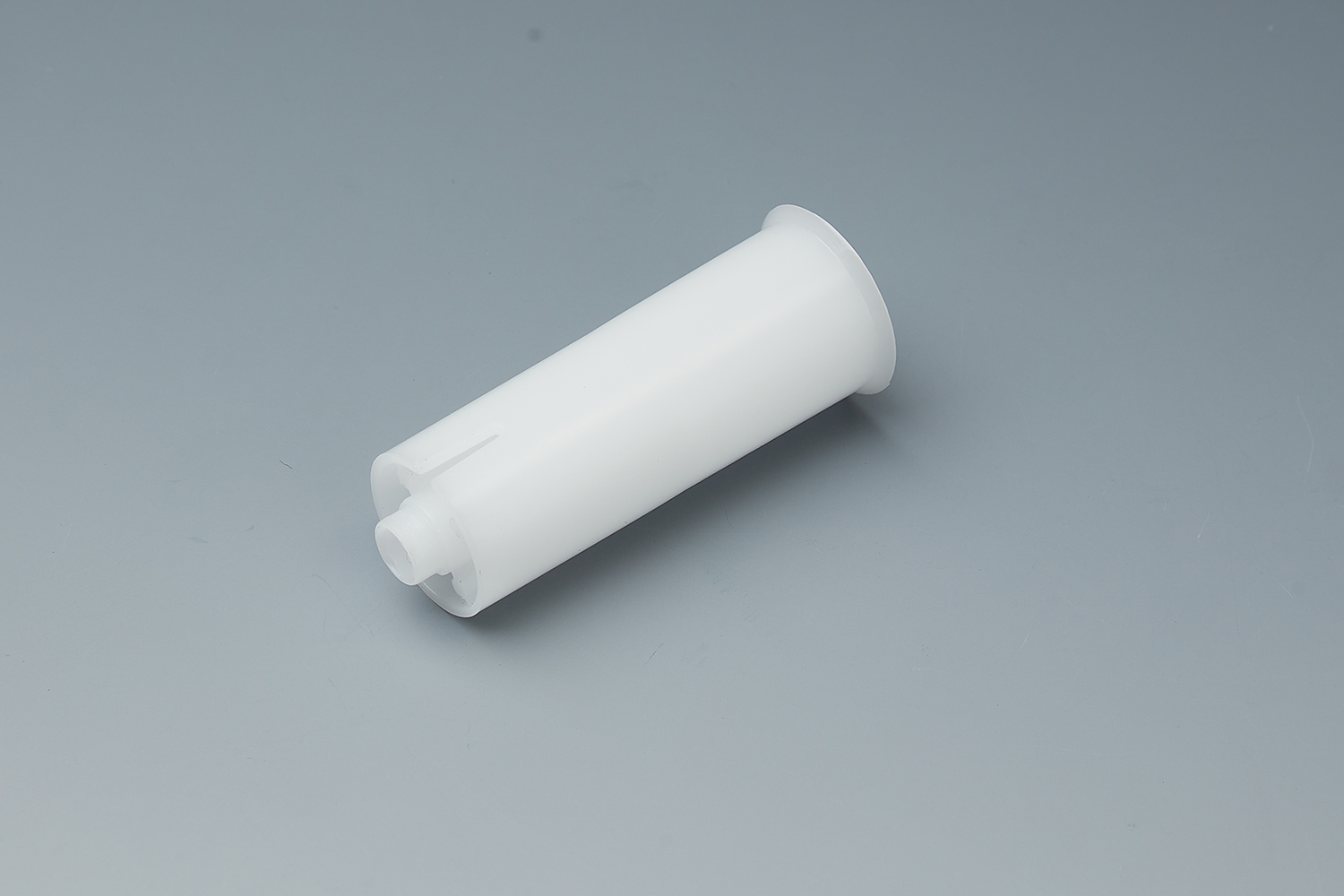

Name：CHC05-Spool Code：H053002 |
 |
Name：CHC05-Spool cradle cover Code：H053303 |
|
Name：CHC-Headrail Code：H005002 |
 |
Name：CHC-Headrail end cap Code：H004102 |
|

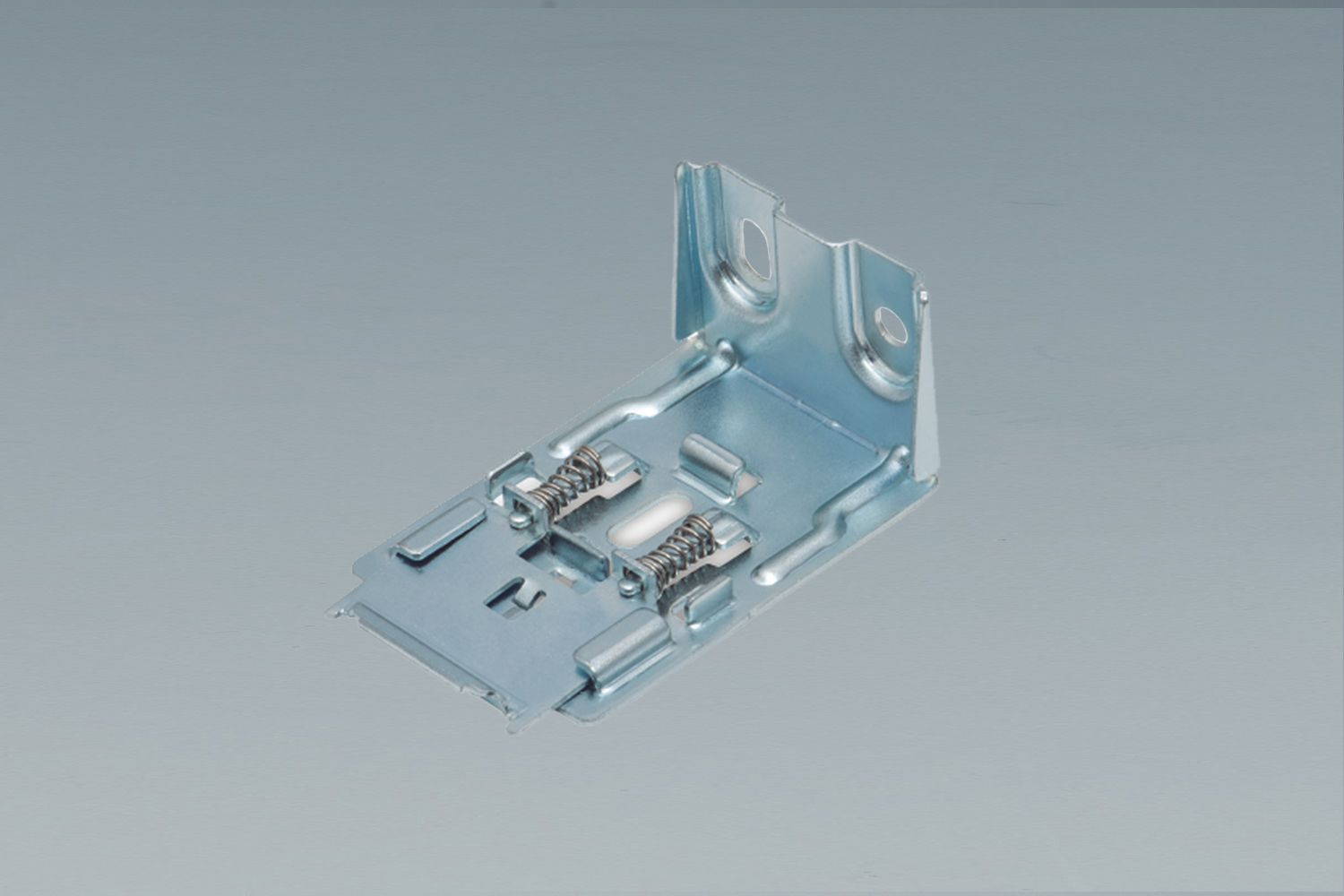

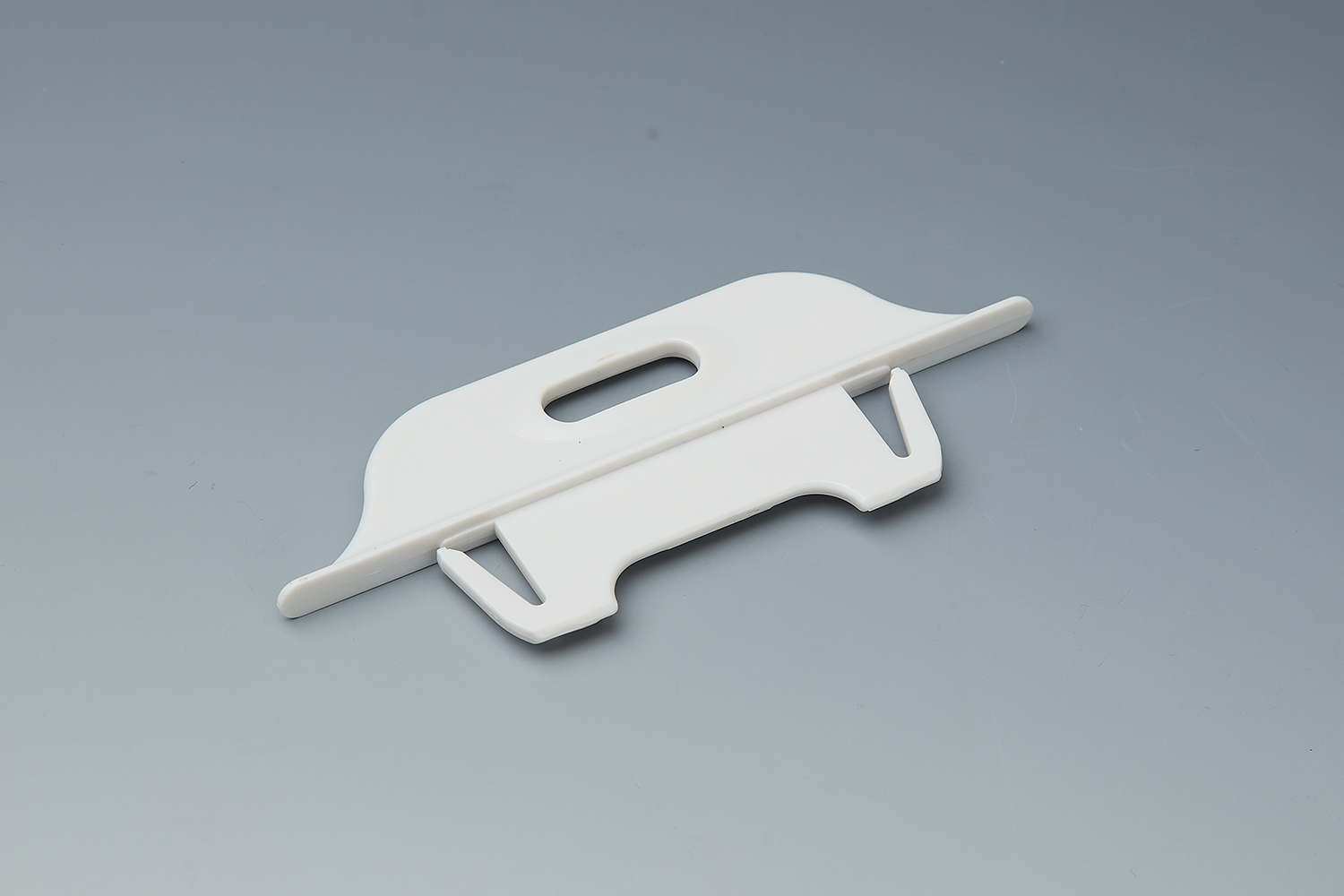

Name：CHC05-Headrail bracket Code：H050801 |
 |

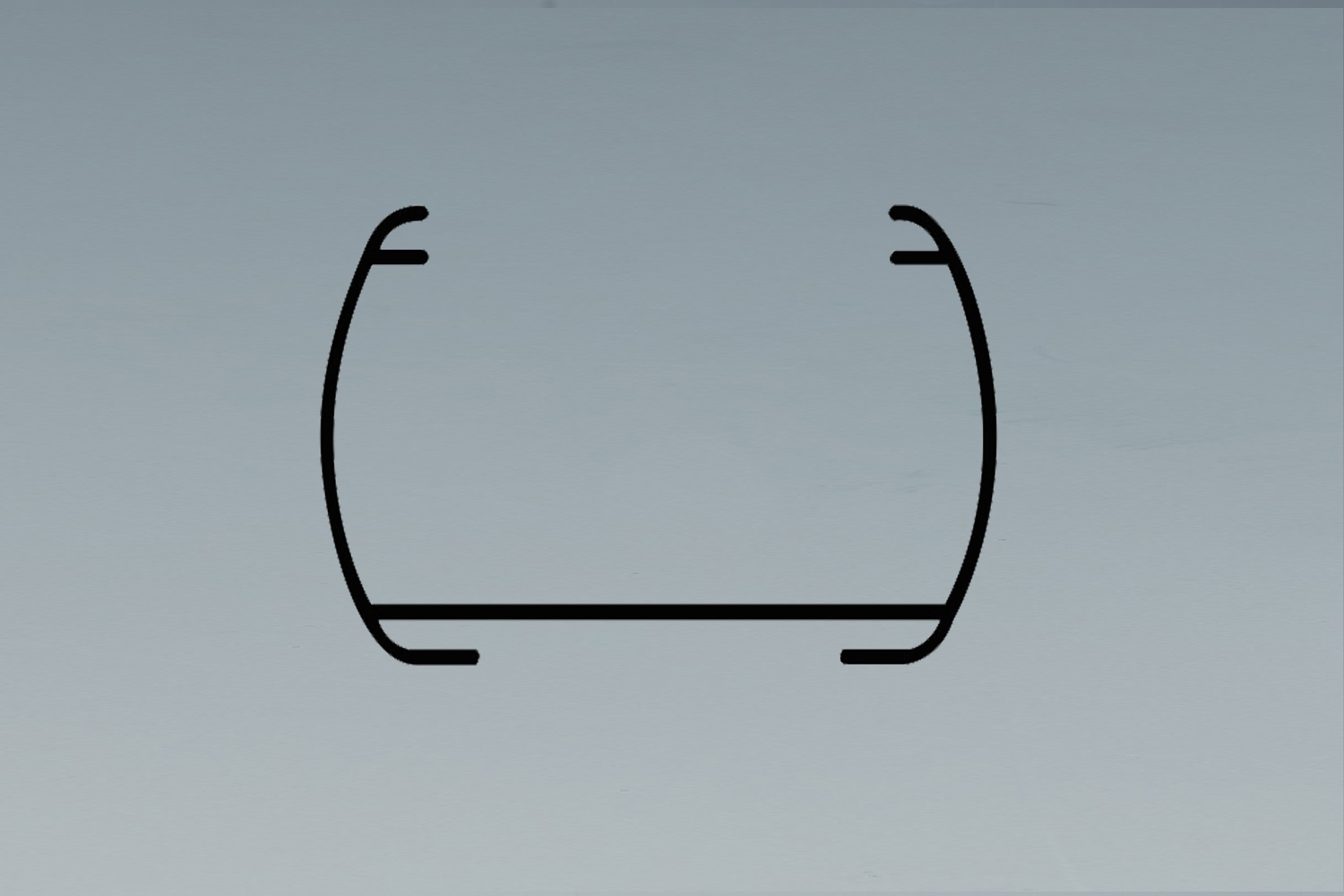

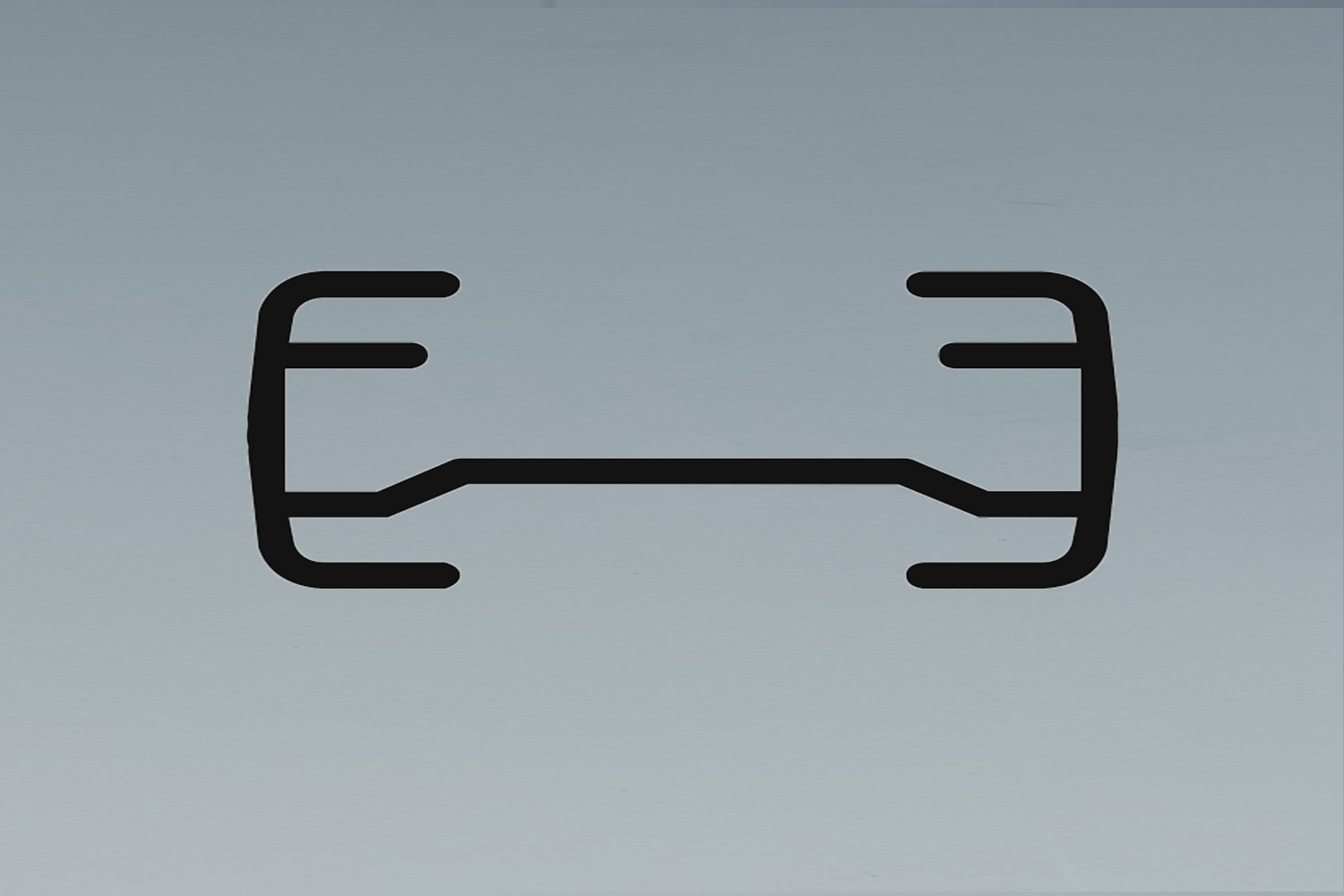

Name：CHC-38mm Bottomrail Code：H015003 |
|
Name：CHC-38mm Bottomrail end cap Code：H014101 |
 |
Name：CHC-Handle Code：H004601 |
|
Name：CHC Bottom rail button Code：H022802 |
 |

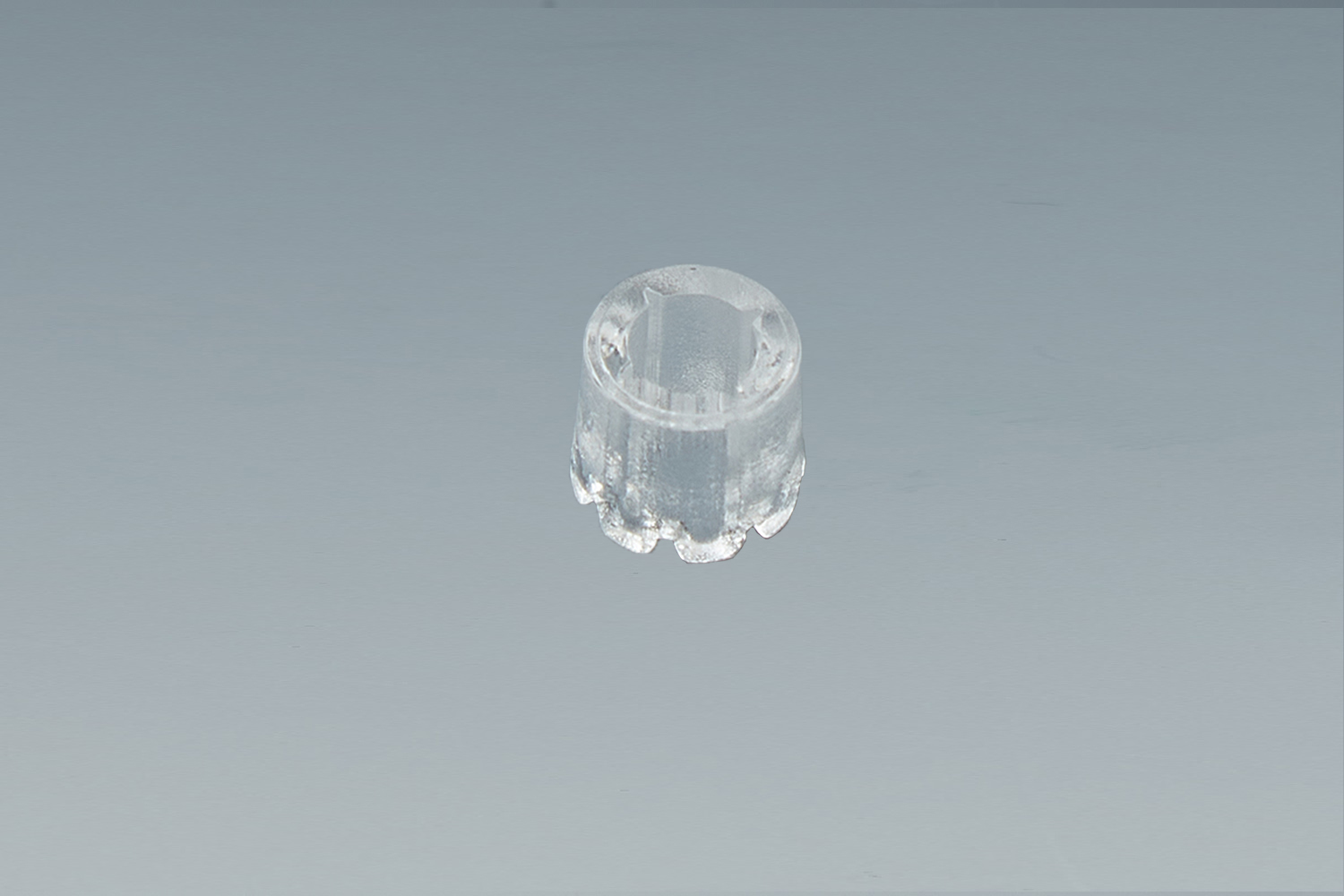

Name：CHC Bottom rail button plug Code：H052803 |
|

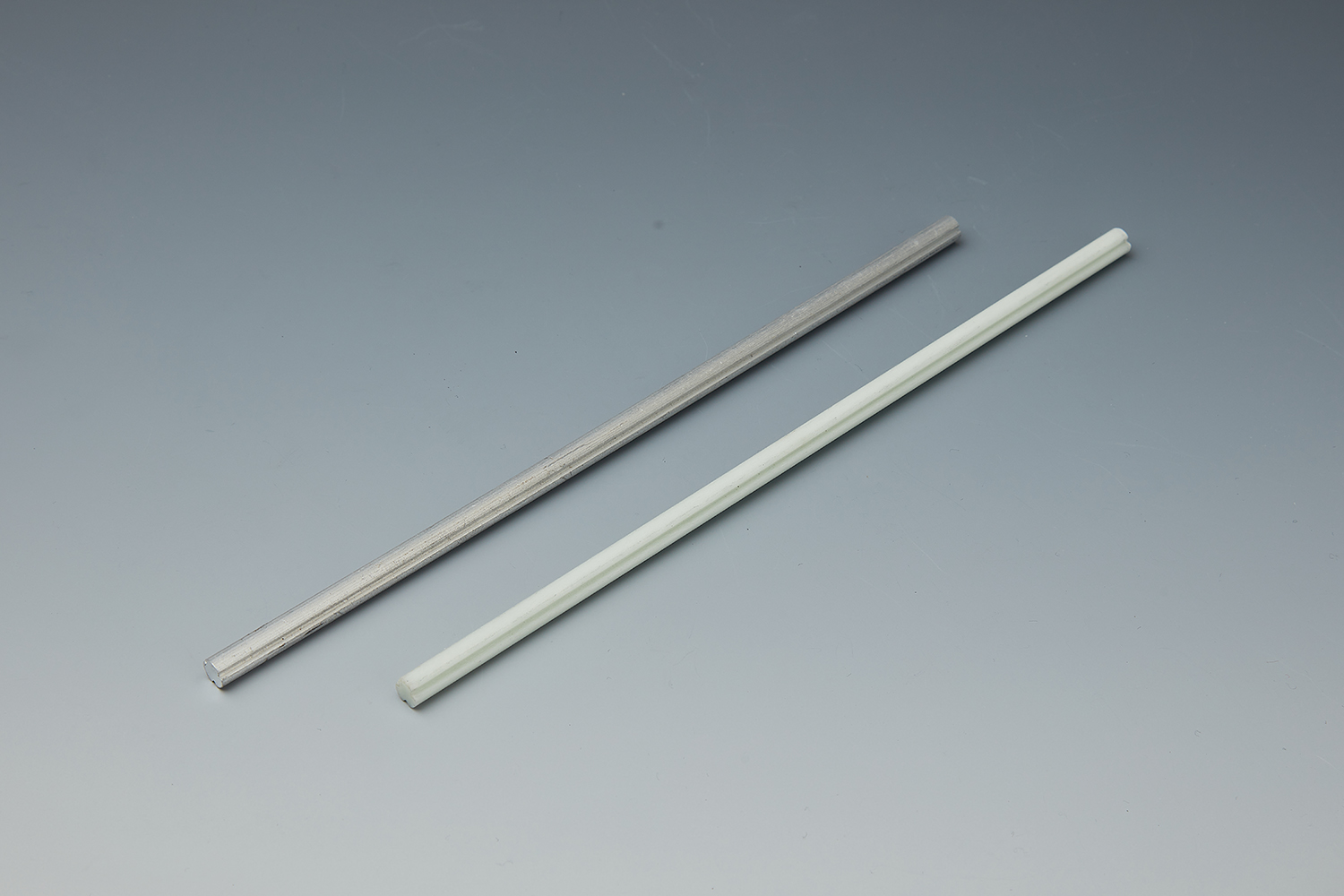

Name：Fiberglass rod/Aluminum rod Code：L010206 L010204 |
 |

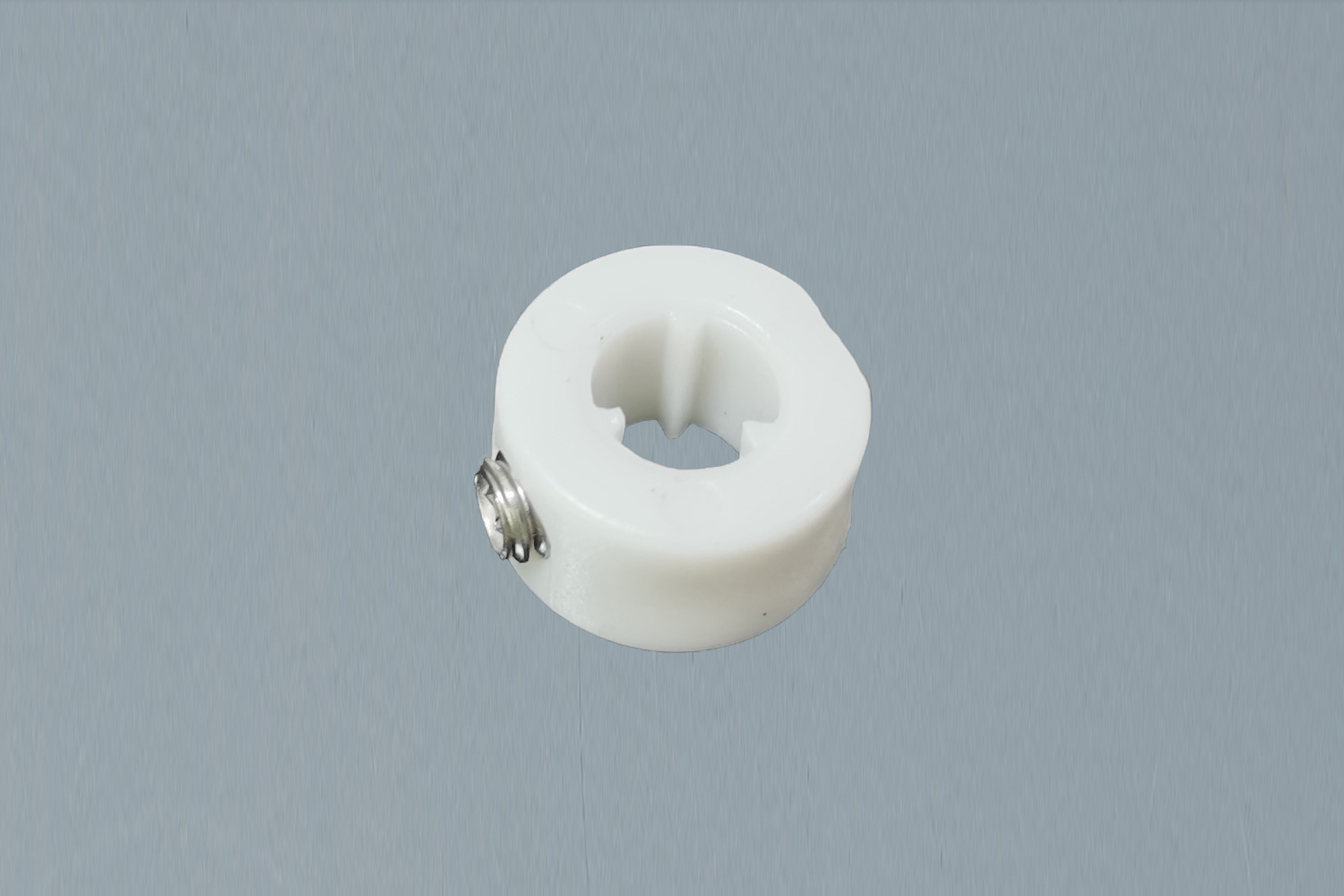

Name：Screwed washer Code：L010533 |
|

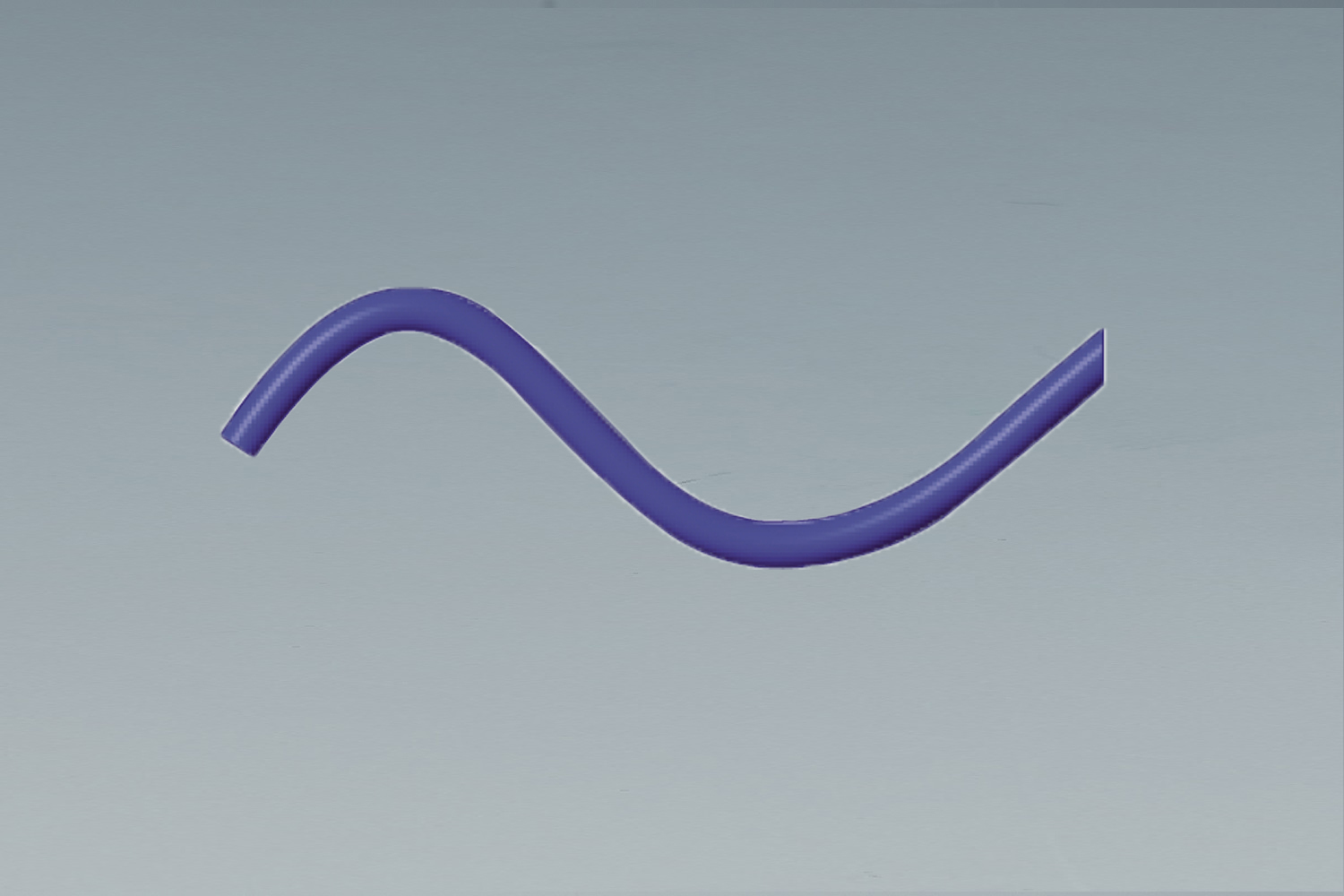

Name：Cord Code：L010701 |
